[Tutorial] How to use modem meta to write IMEI to Mediatek devices

[Tutorial] How to use modem meta to write IMEI to Mediatek devices

Pages (4): Previous 1 2 3 4 Next
dpol
dpol
dpol
Senior Member
187
20-02-2022, 11:22 PM
#21

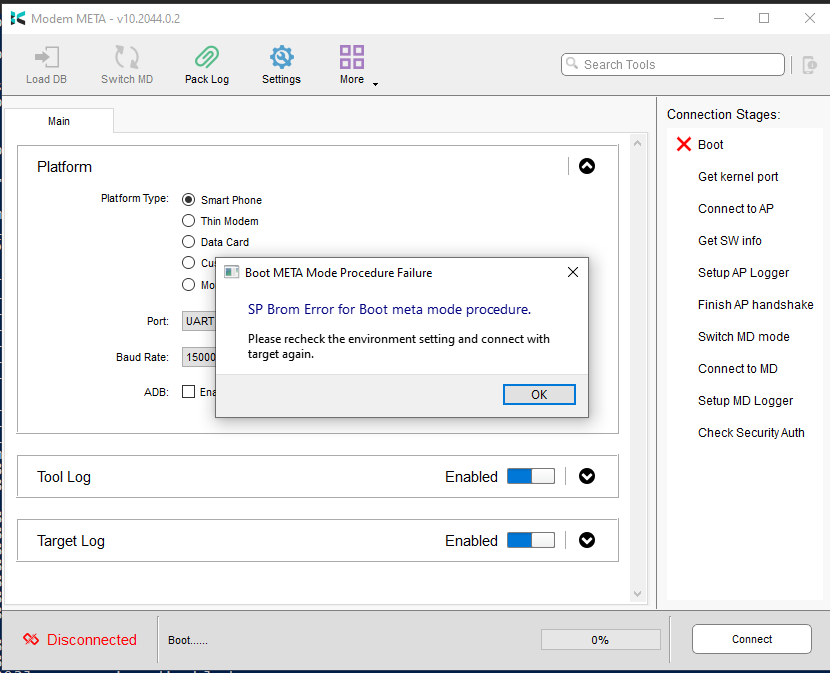

Please, I encountered  "SP Brom error" ... How can I solve this....
Attached Files
.png
Size: 40.59 KB / Downloads: 6
dpol
dpol
dpol
Senior Member
187
21-02-2022, 01:11 AM
#22
(20-02-2022, 11:22 PM)dpol Please, I encountered  "SP Brom error" ... How can I solve this....
Attached Files
.png
ErrorModem 222.PNG
Size: 30.35 KB / Downloads: 6
.png
Size: 40.59 KB / Downloads: 7
dpol
dpol
dpol
Senior Member
187
21-02-2022, 01:40 AM
#23
(21-02-2022, 01:11 AM)dpol
(20-02-2022, 11:22 PM)dpol Please, I encountered  "SP Brom error" ... How can I solve this....

Problem Solved:

How?

I was using the port as UART in the secure boot bypass mode to connect the tool with the phone. I did not know that was not necessary (though clearly stated in the instruction. But, since I was only able to use SP Flash tool in UART bypass mode, I thought the same applied to Meta).

Once I changed the port to USB and enabled ADB Service, it worked without error.

Thank you.
czaroslaw
czaroslaw
czaroslaw
Enthusiastic Member
11
19-05-2022, 11:29 AM
#24
Realme 7 5G RMX2111 android 10, unlocked, rooted, MT6853

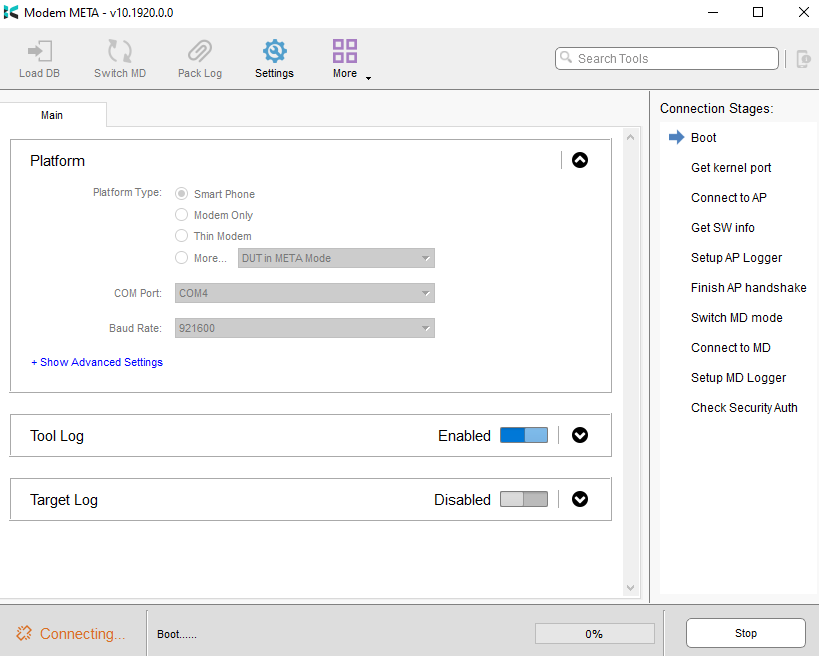

Modem meta connects with the device using DUT in Meta but it show a warning. May this affect the possibility of restoring IMEI? (attachment).
I have no idea what kind of authentication problem it is. I have tried to boot into brom with disabling authentication and then boot to meta. Still the same warning. When I tried to use auth_sv5.auth file from stock firmware, modem meta failed to connect. It stucked at last stage.

How to obtain database for this model? I followed this tutorial: https://www.hovatek.com/forum/thread-11609.html but I have no directory as /system/etc/mddb/.
I have stock firmwares. Where I can find such database? I have to extract some img? Is it possible to extract such database using MTKMetaUtility v37?
This post was last modified: 19-05-2022, 11:33 AM by czaroslaw.
Attached Files
.jpg
Size: 64.94 KB / Downloads: 9
czaroslaw
czaroslaw
czaroslaw
Enthusiastic Member
11
19-05-2022, 08:49 PM
#25



Thanks to MTKMetaUtility I have found where db is stored. Using Dump Modem Database (meta) it gives the path:
/data/vendor_de/meta/mddb
I found there:
MDDB.META.ODB_MT6853_S00_MOLY_NR15_R3_TC16_PR1_SP_V3_P54.XML
MDDB.META.ODB_MT6853_S00_MOLY_NR15_R3_TC16_PR1_SP_V3_P54.XML.GZ

Modem meta failed to load this DB. How to fix it?
maxpayne
maxpayne
maxpayne
Contributor
2,873
23-05-2022, 07:34 AM
#26
(19-05-2022, 08:49 PM)czaroslaw Thanks to MTKMetaUtility I have found where db is stored. Using Dump Modem Database (meta) it gives the path:
/data/vendor_de/meta/mddb
I found there:
MDDB.META.ODB_MT6853_S00_MOLY_NR15_R3_TC16_PR1_SP_V3_P54.XML
MDDB.META.ODB_MT6853_S00_MOLY_NR15_R3_TC16_PR1_SP_V3_P54.XML.GZ

Modem meta failed to load this DB. How to fix it?

Use Z3x Pandora to path cert if you have it
This post was last modified: 23-05-2022, 07:34 AM by maxpayne.
czaroslaw
czaroslaw
czaroslaw
Enthusiastic Member
11
23-05-2022, 08:21 AM
#27
(23-05-2022, 07:34 AM)maxpayne Use Z3x Pandora to path cert if you have it
No, I don't have it.

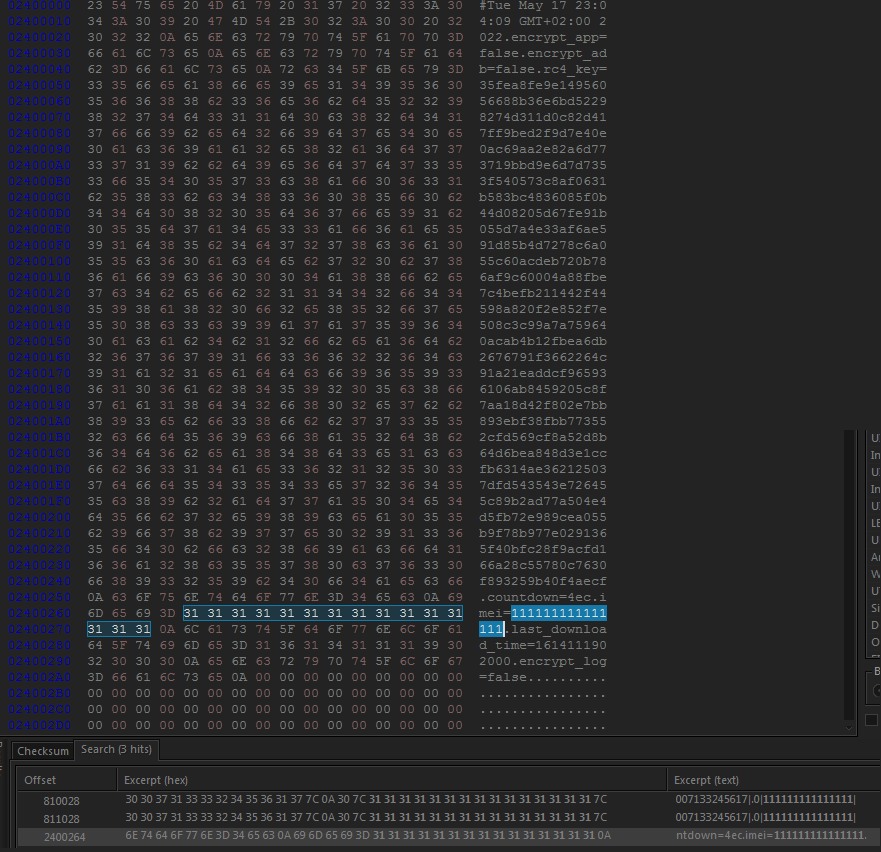

If database is used to write IMEI I guess it have information where IMEI is stored. What kind of string gives the location of IMEI? Seach for IMEI string gives a lot of results. Is IMEI stored in explicit way? I have found it in opporeserve2.img.

https://www.hovatek.com/forum/attachment.php?aid=10302
https://www.hovatek.com/forum/attachment.php?aid=10304
This post was last modified: 23-05-2022, 08:25 AM by czaroslaw.
maxpayne
maxpayne
maxpayne
Contributor
2,873
26-05-2022, 09:49 AM
#28
(23-05-2022, 08:21 AM)czaroslaw
(23-05-2022, 07:34 AM)maxpayne Use Z3x Pandora to path cert if you have it
No, I don't have it.

If database is used to write IMEI I guess it have information where IMEI is stored. What kind of string gives the location of IMEI? Seach for IMEI string gives a lot of results. Is IMEI stored in explicit way? I have found it in opporeserve2.img.

Is your current IMEI 11111111.....?
czaroslaw
czaroslaw
czaroslaw
Enthusiastic Member
11
28-05-2022, 01:02 PM
#29
(26-05-2022, 09:49 AM)maxpayne Is your current IMEI 11111111.....?

Yes, IMEI2 is 222..

My phone stopped working after it was put on direct sun and overheated. It could not power up. Next day it powered up but had been ustable, lots of error, crashes, problem with connecting gsm network, wifi. Then I lost sim1 and sim2 connectivity. After OTA update the phone was working properly but still no gsm connection. Then I realized that something is wrong with IMEIs
maxpayne
maxpayne
maxpayne
Contributor
2,873
31-05-2022, 05:06 PM
#30



(28-05-2022, 01:02 PM)czaroslaw Yes, IMEI2 is 222..

My phone stopped working after it was put on direct sun and overheated. It could not power up. Next day it powered up but had been ustable, lots of error, crashes, problem with connecting gsm network, wifi. Then I lost sim1 and sim2 connectivity. After OTA update the phone was working properly but still no gsm connection. Then I realized that something is wrong with IMEIs

Try IMEI converter mentioned here https://www.hovatek.com/forum/thread-26051.html
you can trace where your IMEI appears in nvram file then edit accordingly
