[Tutorial] How to use NCK Box to write IMEI to Mediatek devices
[Tutorial] How to use NCK Box to write IMEI to Mediatek devices
02-01-2019, 09:37 PM
This guide will teach you how to use NCK Box to fix null IMEI / write IMEI to your Mediatek Android device.
Requirements
- Install Mediatek USB VCOM drivers
- Download NCK AndroidMTK or Setup NCK Pro Box
- Download and install NckBox MTK module
- Mediatek Android phone you wish to backup
- Find out the phone's chipset i.e MT****
- PC
- USB cord
Steps to writing IMEI on Mediatek using NCK Box
Follow the steps below to write IMEI to a Mediatek device using NCK Box
See the video below or @ https://youtu.be/M-e81fZwqqI- Open NCK Module and Click on IMEI Utils
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-2.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-2.png)

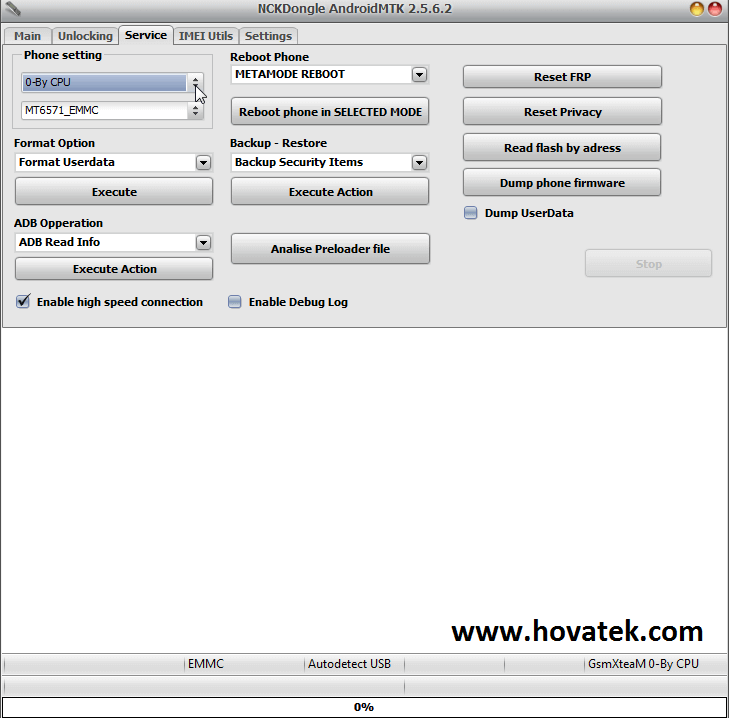

- Under Phone settings, leave the first dropdown as 0-by-CPU
![[Image: how-to-format-single-partition-of-an-mtk...-nck-3.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-format-single-partition-of-an-mtk-phone-using-nck-3.png)
- Select your phone's chipset (MTxxxx) from the second dropdown
![[Image: how-to-format-single-partition-of-an-mtk...-nck-4.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-format-single-partition-of-an-mtk-phone-using-nck-4.png)

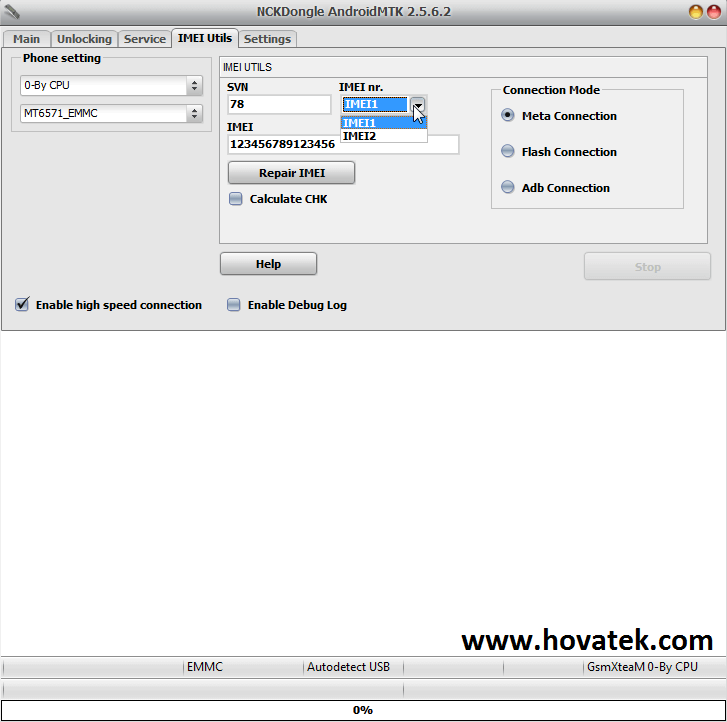

- Select which IMEI you will write, IMEI1 is for SIM 1 and IMEI 2 is for SIM2
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-3.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-3.png)

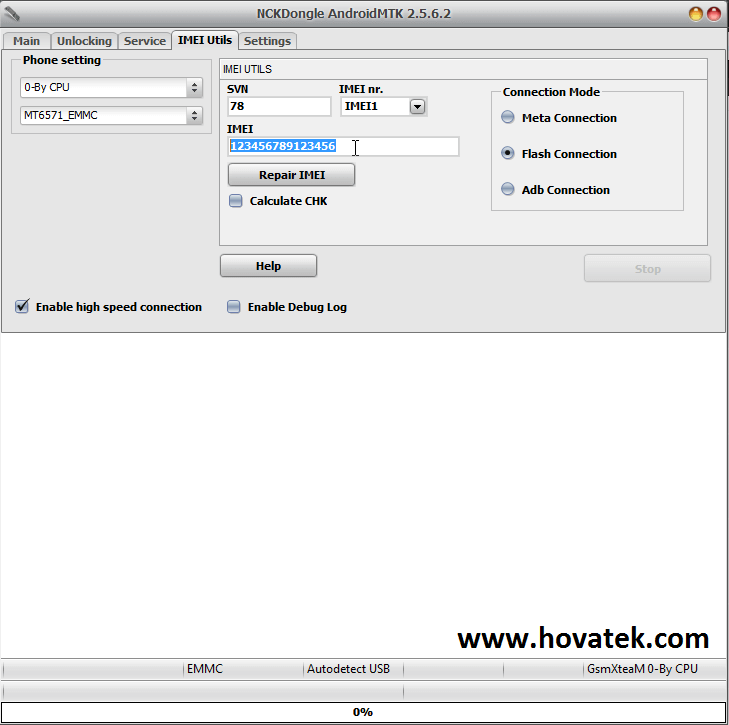

- Input your phone’s original IMEI written on a sticker at the back cover of your phone or under the battery
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-5.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-5.png)

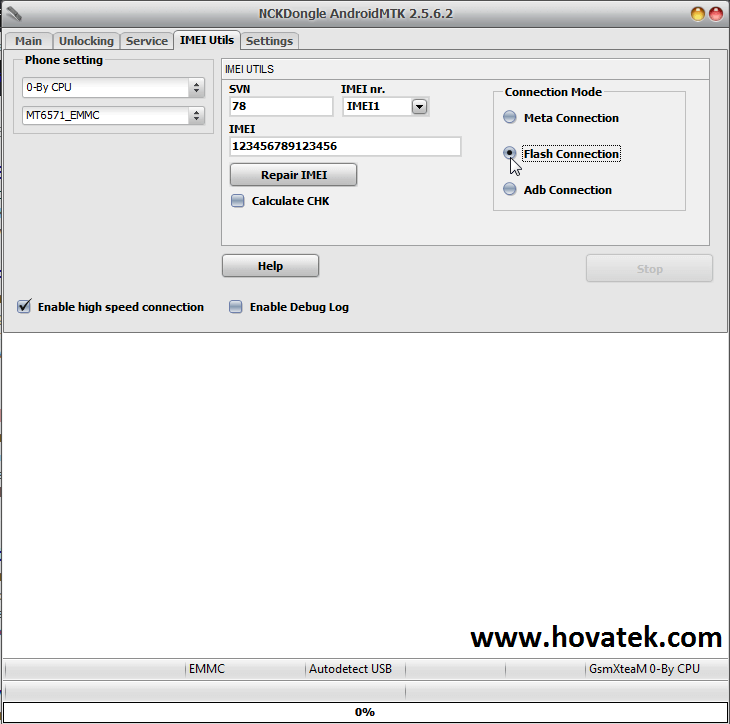

- Set connection mode as Flash Connection
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-4.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-4.png)

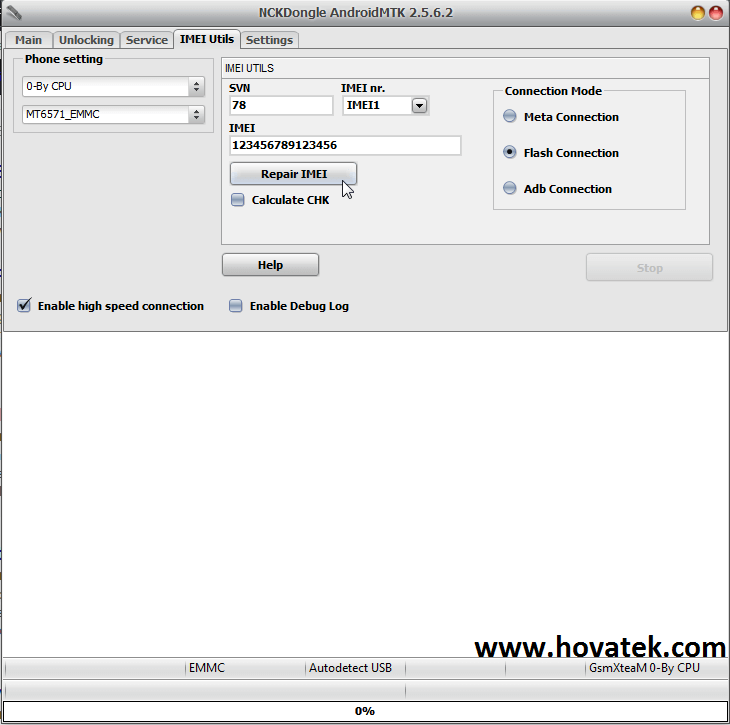

- Click Repair IMEI
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-6.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-6.png)

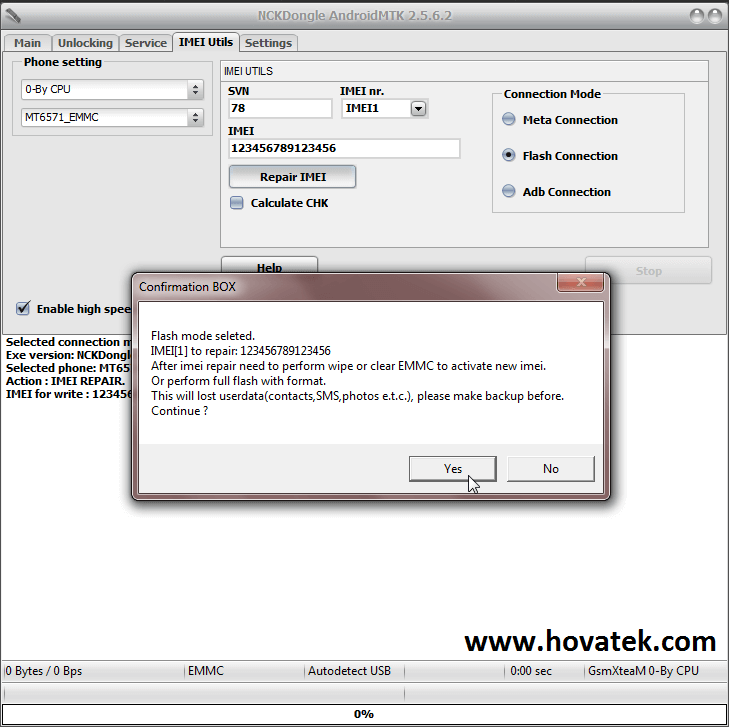

- A confirmation box will pop up to notify you that after writing IMEI you will need to factory reset via recovery mode or factory mode before the written IMEI will take effect. Click Yes
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-7.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-7.png)

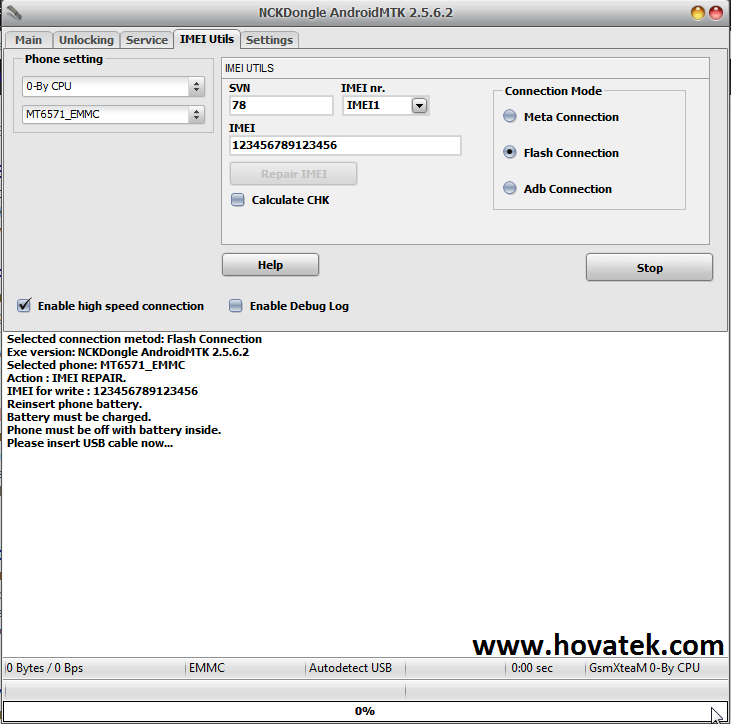

- You will see Please insert USB cable now.., power off the phone (still with battery in), don't hold any button then connect a USB cord from PC to Phone
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-8.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-8.png)

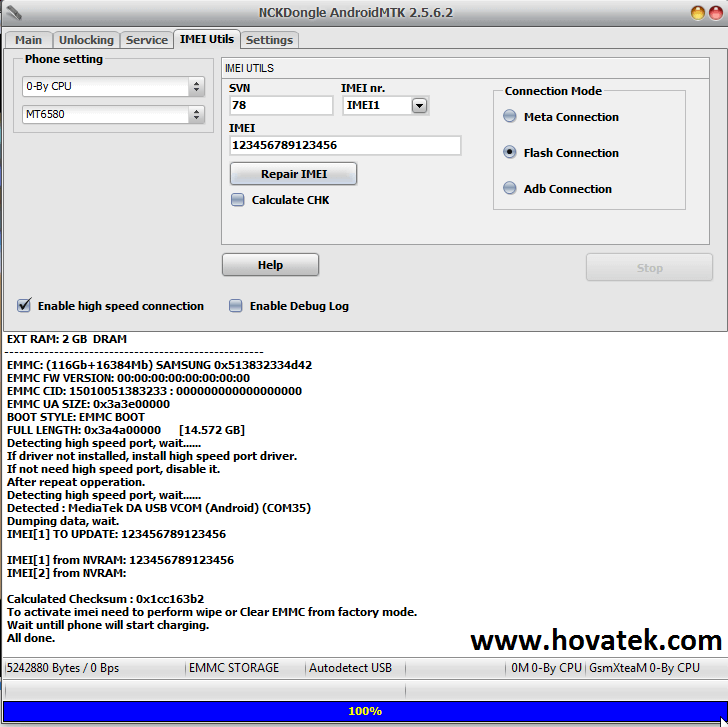

- You should see All Done
![[Image: how-to-write-imei-of-an-mtk-phone-using-nck-box-9.png]](https://www.hovatek.com/blog/bpyeki/uploads/2019/01/how-to-write-imei-of-an-mtk-phone-using-nck-box-9.png)
Important Notice
- You will need to factory reset via factory mode, recovery mode or phone settings.
- NCK Pro Box requires a hardware box to work. Installing and running the Module without the hardware won't work
- If you are using a loader version (no hardware required) then your antivirus might block it. It's up to you to either heed or allow the software to run anyway
- This tool only writes IMEI you supply. It doesn't auto-generate IMEI
- This guide only explains how to write IMEI not change IMEI; meaning you are entirely responsible for whatever IMEI you choose to write
- Ensure to resolve unknown baseband before going on to fix null IMEI else the process will fail
This post was last modified: 07-10-2019, 08:33 PM by xerxes.
14-02-2019, 10:40 AM
(14-02-2019, 06:08 AM)Noblex After inserting my phone via USB cord nothing was showing up
ensure your phone is a mediatek device and install vcom driver in the requirements section
if you still have problems, then create a new thread so we'll focus on it
see https://www.hovatek.com/forum/thread-514.html for how to create a thread
