This guide will teach you how to use GSM Aladdin Box to flash a Mediatek (MTK) android phone's firmware in scatter format.

Requirements:


Steps to flash a Mediatek (MTK) phone using GSM Aladdin Box


Follow the steps below to use GSM Aladdin to flash Mediatek devices

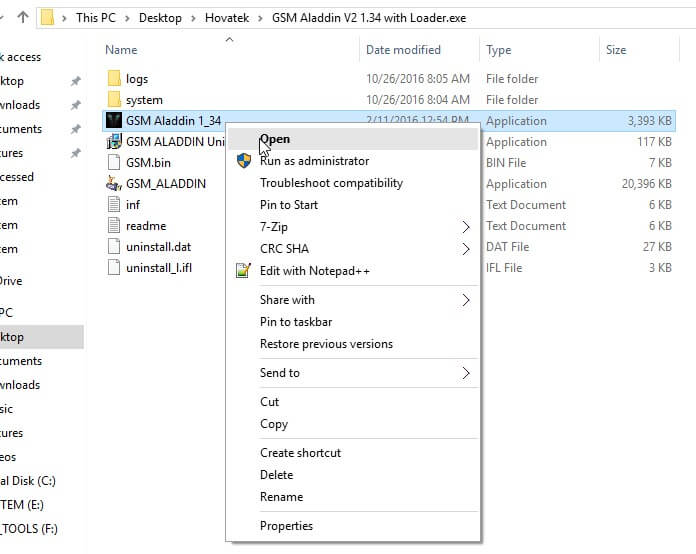

  1. Extract the content of the GSM Aladdin zip and double-click GSM Aladdin 1.34.exe

    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-1.jpg]

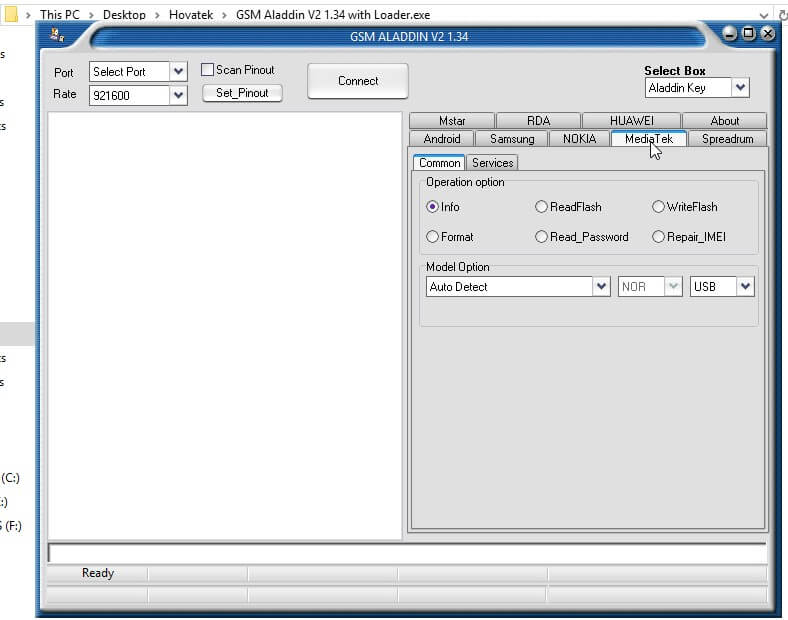

  2. Click the Mediatek tab

    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-2.jpg]

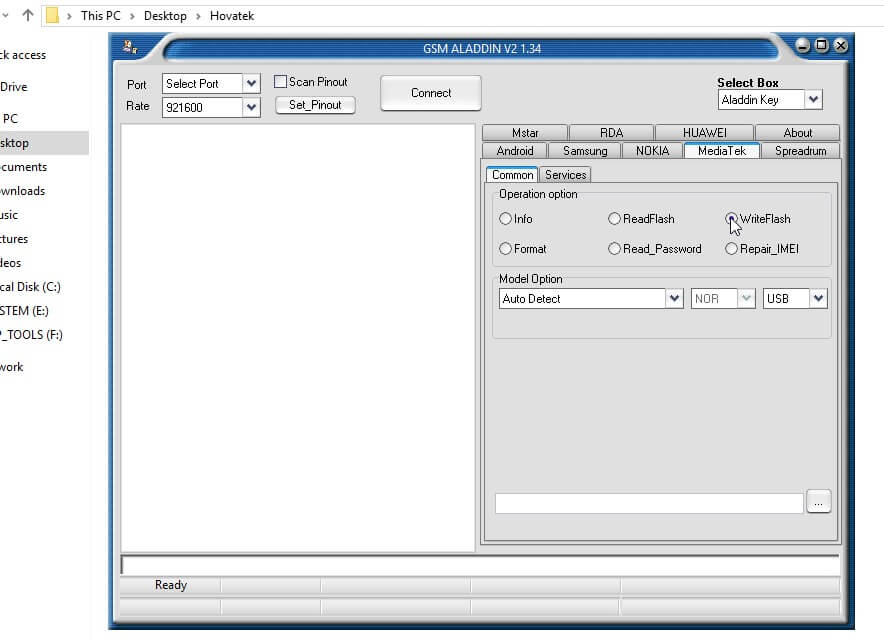

  3. Tick WriteFlash

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-1.jpg]

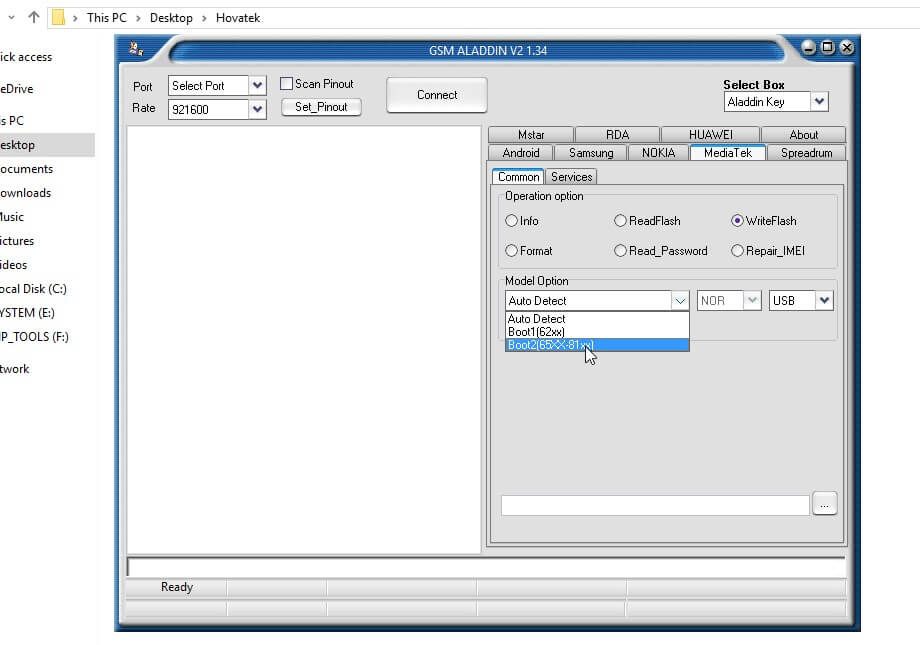

  4. Select your chipset type under Model Option or leave as Auto Detect if not sure

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-2.jpg]

  5. Set to USB

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-3.jpg]

  6. Click the Browse icon at the bottom right corner

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-4.jpg]

  7. Navigate to the location of the backup, select the Scatter file then click Open

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-5.jpg]

  8. Click Connect (at the top)

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-6.jpg]

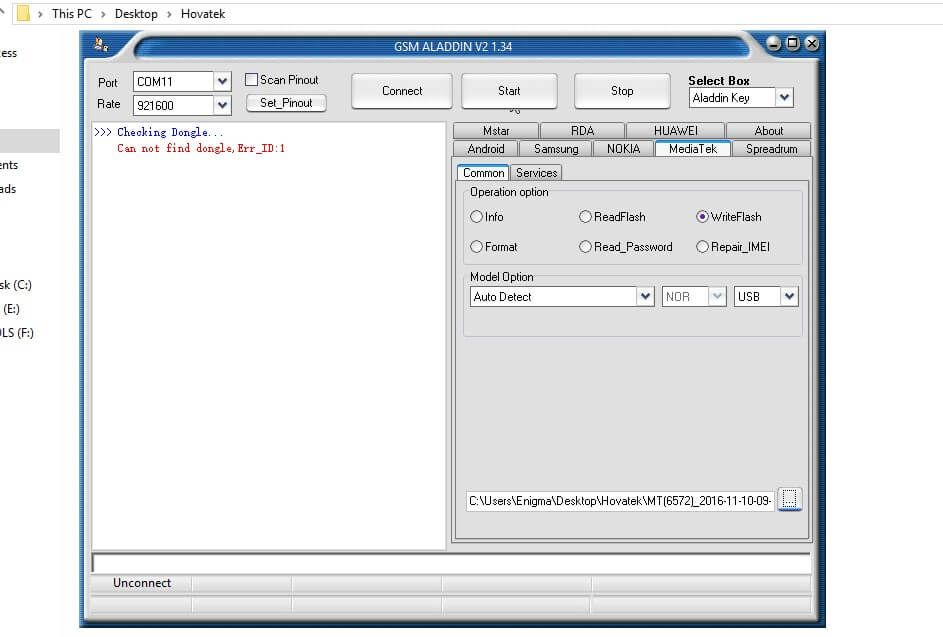

  9. Click Start

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-7.jpg]

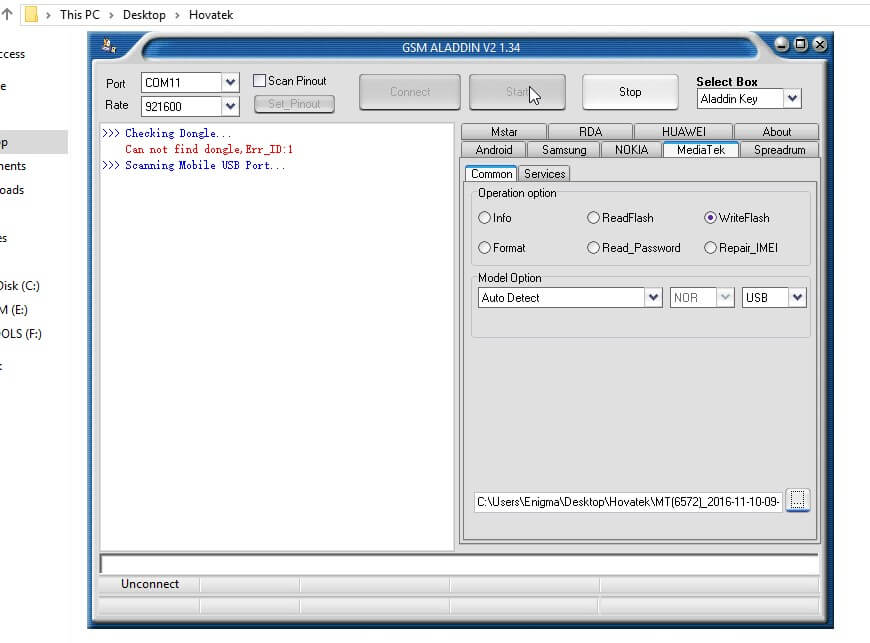

  10. Connect the phone (via USB) while switched off and with a charged battery inside

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-8.jpg]

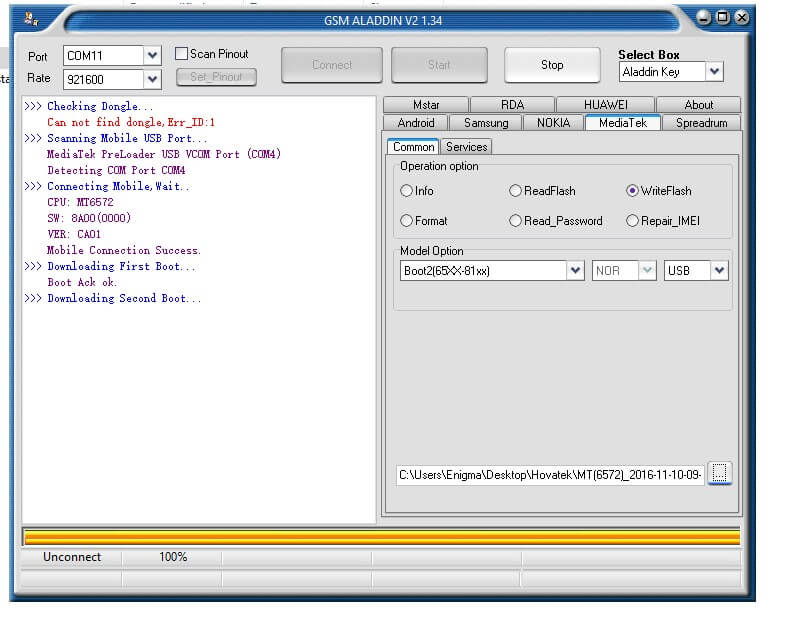

  11. The phone should get detected

    [Image: Hovatek-how-to-flash-firmware-to-a-media...-box-9.jpg]

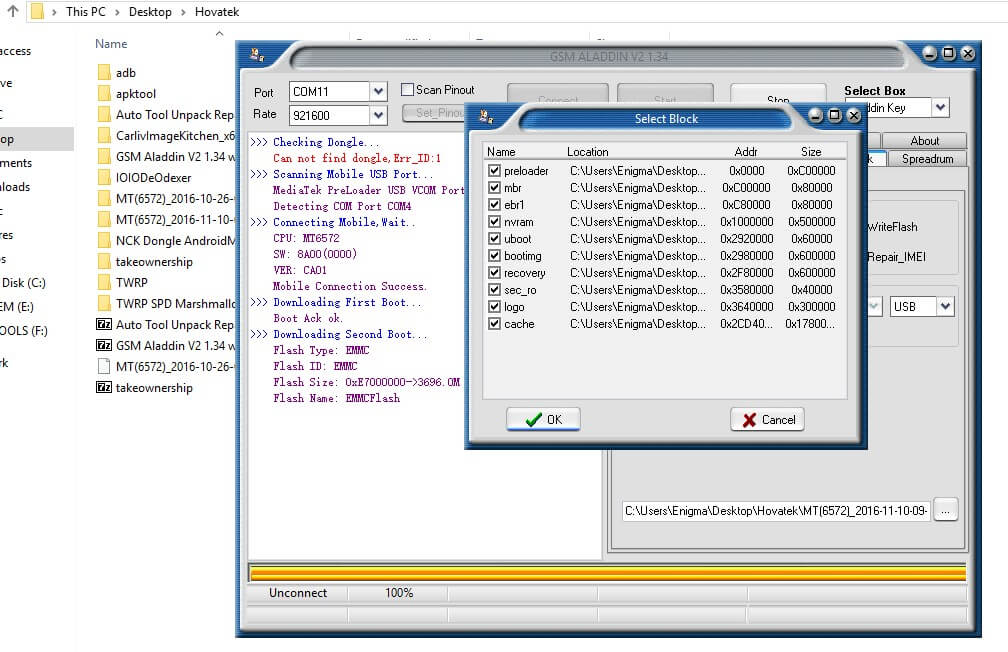

  12. A box should popup, tick the partitions you wish to flash to the phone

    [Image: Hovatek-how-to-flash-firmware-to-a-media...box-10.jpg]

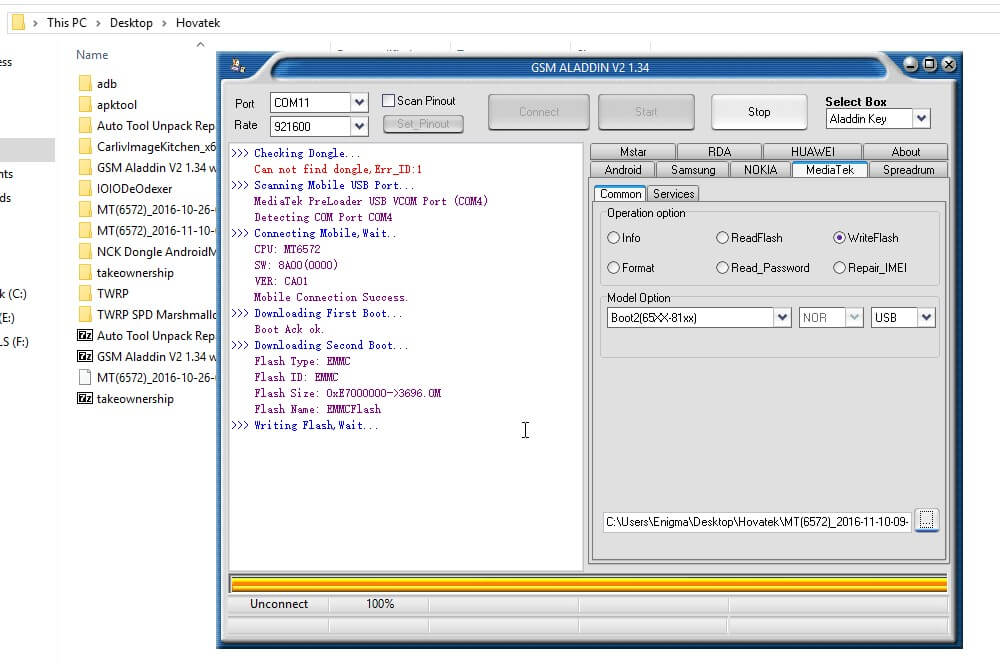

  13. You should now see >>> Writing Flash Wait...

    [Image: Hovatek-how-to-flash-firmware-to-a-media...box-11.jpg]

  14. Flashing should begin, do not interrupt

    [Image: Hovatek-how-to-flash-firmware-to-a-media...box-12.jpg]

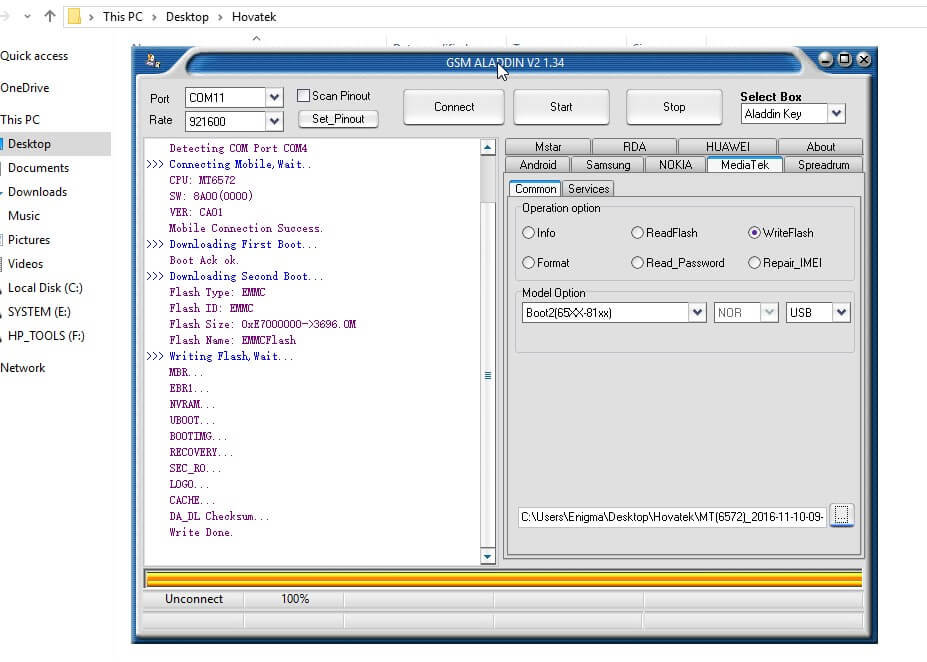

  15. Once flashing is done, you should see Write Done 100% . Disconnect the phone then boot

    [Image: Hovatek-how-to-flash-firmware-to-a-media...box-13.jpg]

Important Notice
  • GSM Alladin ideally requires a hardware box. Running the setup without one won't work
  • If you are using a loader version (no hardware box required) then your antivirus might flag it. You are entirely responsible for your decision to heed or ignore
  • You should only flash firmware for your phone model. Doing otherwise could brick it
  • Avoid interrupting the flashing process because that could cause the device to go dead
  • For best compatibility, flash back GSM Aladdin box backups using the tool
  • For Secure Boot devices, you'll need to load the DA file
This post was last modified: 01-11-2019, 04:04 PM by hovatek.
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
Reply
Reply
Masaba
Masaba
Masaba
Newbie
1
14-05-2022, 09:45 AM
#2
pliz help me with the steps to follow to remove phone password for itel 5081 buttorn phone using aladin
Reply
Reply
hovatek
hovatek
hovatek
Administrator
Website
50,949
15-05-2022, 02:54 PM
#3
(14-05-2022, 09:45 AM)Masaba pliz help me with the steps to follow to remove phone password for itel 5081 buttorn phone using aladin

Create a thread by clicking Ask Question at the top
