This guide will teach you how to use GSM Aladdin Box to backup / dump a Mediatek (MTK) Android phone's firmware in both scatter and .bin format. Its important to backup so you have something to unbrick with.

Requirements


Steps to backup a Mediatek Android phone's firmware using GSM Aladdin Box


Follow the steps below to use GSM Aladdin to backup a Mediatek device's firmware

  1. Extract the content of the GSM Aladdin zip and double-click GSM Aladdin 1.34.exe


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-1.jpg]


  2. Click the Mediatek tab


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-2.jpg]



  3. Tick ReadFlash


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-3.jpg]

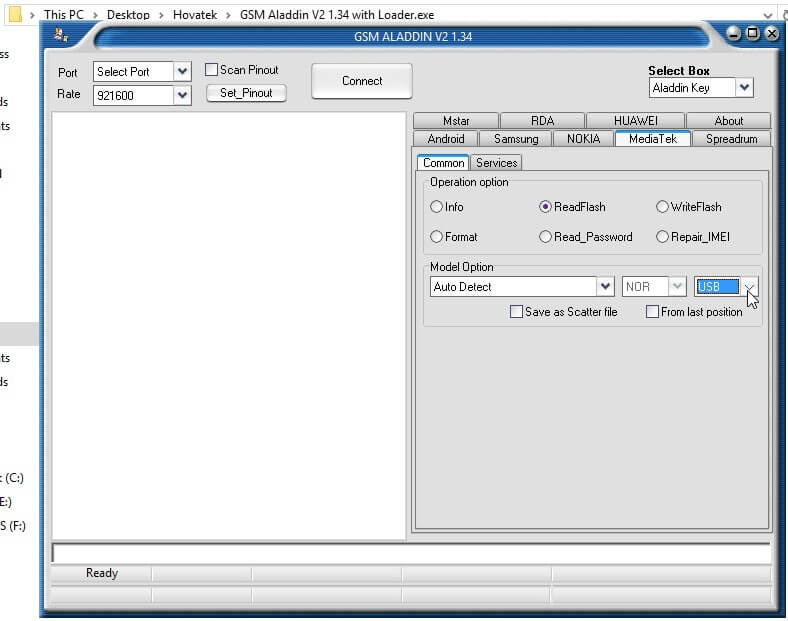

  4. Set Model option to Auto Detect and USB


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-4.jpg]



  5. If you wish to dump the firmware in scatter format, tick Save as Scatter file. For whole .bin format, leave this option unticked


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-5.jpg]



  6. Click Connect


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-6.jpg]

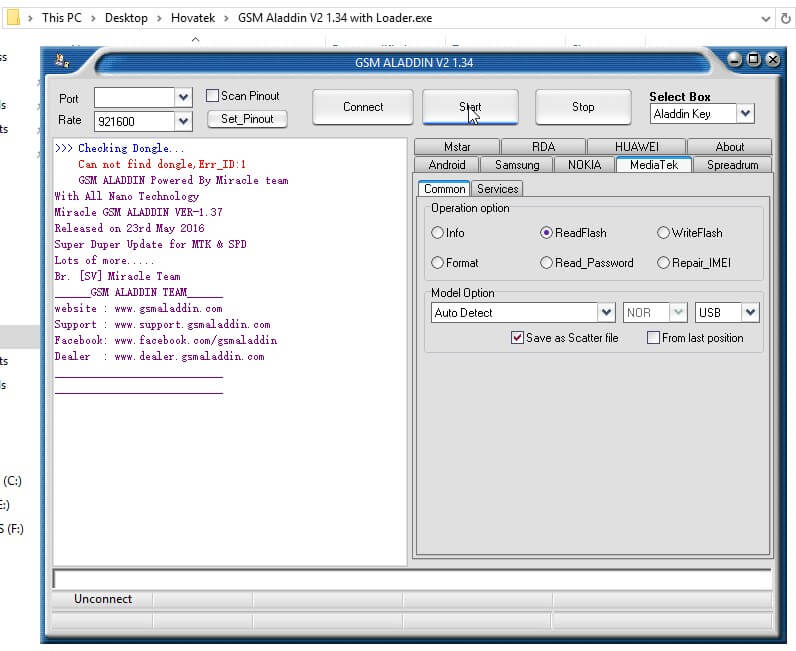

  7. Click Start


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-7.jpg]



  8. You should now see >>> Scanning Mobile USB Port... . At this point, switch off the phone then connect it to the PC via USB cord (with or without the battery in it)


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-8.jpg]

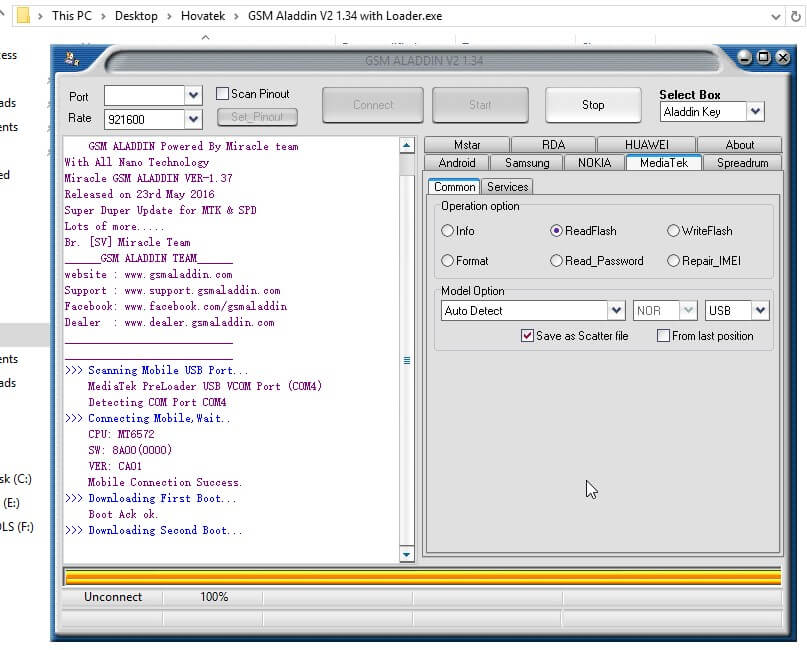

  9. GSM Aladdin should now detect the phone


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...-Box-9.jpg]

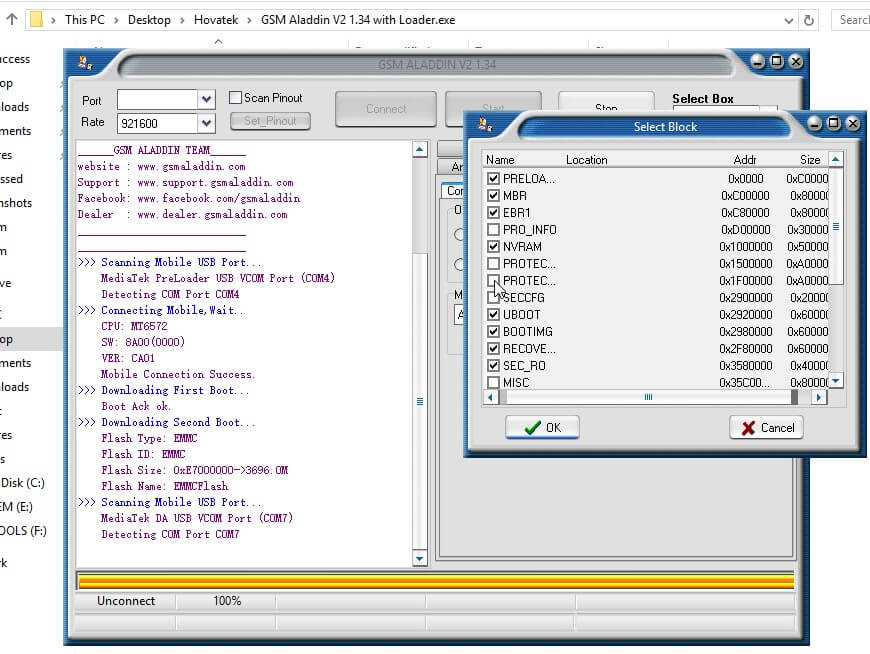

  10. If you ticked the Scatter file option, a box should popup. In this box, tick the partitions you wish to backup / Dump


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...Box-10.jpg]

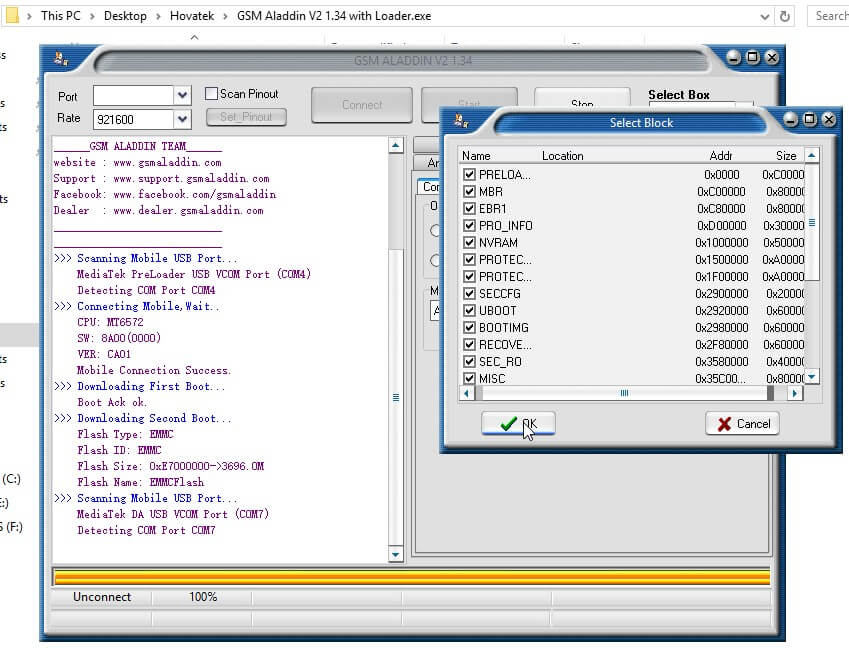

  11. Click OK when you're done


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...Box-11.jpg]



  12. Select the location you wish to save the backup to then click OK


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...Box-12.jpg]



  13. GSM Aladdin should begin backing up the selected partitions. Do Not interrupt this process


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...Box-13.jpg]



  14. If you didn't tick the scatter file option, a window will popup. Select the location you wish to save the whole .bin backup to then click Save


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...ox-13a.jpg]


  15. GSM Aladdin should commence backup. Do Not interrupt this process


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...ox-13b.jpg]

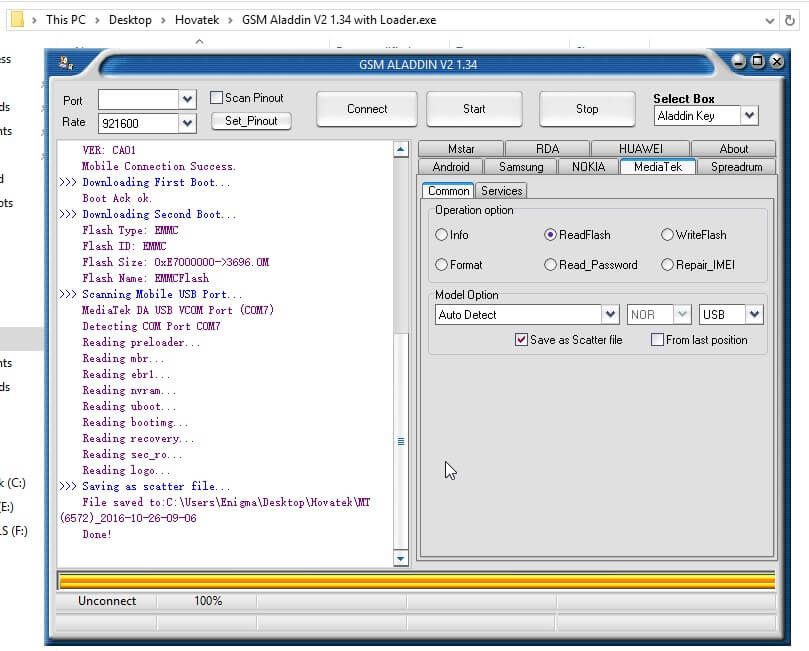

  16. Once backup is done, you should get a success message


    [Image: Hovatek-how-to-backup-or-dump-MTK-Androi...Box-14.jpg]

Important Notice
  • GSM Aladdin ideally requires a hardware box to work. Running the module without one won't work
  • If you decide to use a loader version (no hardware needed) then your antivirus might flag it. Its entirely up to you to heed or ignore
  • For best compatibility, flash your backup using GSM Aladdin box
  • Avoid interrupting the backup process as doing so could cause the device to go dead
  • Secure Boot devices will require a DA file
This post was last modified: 01-11-2019, 04:17 PM by hovatek.
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
Reply
Reply
lakunle1love
lakunle1love
lakunle1love
Respected Member
Find
108
17-01-2017, 05:38 PM
#2
(26-10-2016, 09:57 AM)hovatek .

Thanks for this.


If you backup with the scatter file option, does that mean that you can use Sp flash tool to flash the dumbed/backup firmware on an another phone?
This post was last modified: 16-06-2018, 11:21 AM by hovatek.
Reply
Reply
ALBA
ALBA
ALBA
Senior Member
Find
550
17-01-2017, 06:04 PM
#3
[quote='lakunle1love' pid='97273' dateline='1484671104']
Yes u can but u need to change the name from "example" recovery.bin to recovery.img and that should go to the other file as well and then u can flash it using Sp flash tool
This post was last modified: 26-04-2018, 11:33 AM by hovatek.
Reply
Reply
lakunle1love
lakunle1love
lakunle1love
Respected Member
Find
108
24-01-2017, 10:09 AM
#4
Please i have a problem. Whenever i plug the usb to the phone, it always charges instead of the ALADDIN to detect the phone, even if i remove the battery,ALADDIN will not detect it and if i put the batterry, it will start charging.


HELP!
Reply
Reply
hovatek
hovatek
hovatek
Administrator
Website Find
50,964
24-01-2017, 03:58 PM
#5

Mediatek Course Mediatek Course


(24-01-2017, 10:09 AM)lakunle1love Please i have a problem. Whenever i plug the usb to the phone, it always charges instead of the ALADDIN to detect the phone, even if i remove the battery,ALADDIN will not detect it and if i put the batterry, it will start charging.


HELP!

That's because you've not installed drivers as the guide instructed
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
Reply
Reply
lakunle1love
lakunle1love
lakunle1love
Respected Member
Find
108
25-01-2017, 09:00 AM
#6
(24-01-2017, 03:58 PM)hovatek
(24-01-2017, 10:09 AM)lakunle1love Please i have a problem. Whenever i plug the usb to the phone, it always charges instead of the ALADDIN to detect the phone, even if i remove the battery,ALADDIN will not detect it and if i put the batterry, it will start charging.


HELP!

That's because you've not installed drivers as the guide instructed

I have  the vcom drivers installed. Maybe i should reinstall
Reply
Reply
hovatek
hovatek
hovatek
Administrator
Website Find
50,964
25-01-2017, 02:14 PM
#7
(25-01-2017, 09:00 AM)lakunle1love I have  the vcom drivers installed. Maybe i should reinstall

Yes, you should
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
Reply
Reply
Adonso
Adonso
Adonso
Respected Member
Find
116
26-04-2018, 10:01 AM
#8
(26-10-2016, 09:57 AM)hovatek ...
Please how do I get the content of the .bin file after dumping? Power ISO says file is unsupported or invalid please.
This post was last modified: 26-04-2018, 11:34 AM by hovatek.
Reply
Reply
xerxes
xerxes
xerxes
Senior Member
Find
10,418
26-04-2018, 11:09 AM
#9
(26-04-2018, 10:01 AM)Adonso Please how do I get the content of the .bin file after dumping? Power ISO says file is unsupported or invalid please.

Which particular file do you want to unpack its contents?
Reply
Reply
Adonso
Adonso
Adonso
Respected Member
Find
116
26-04-2018, 11:31 AM
#10
(26-04-2018, 11:09 AM)innagee
(26-04-2018, 10:01 AM)Adonso Please how do I get the content of the .bin file after dumping? Power ISO says file is unsupported or invalid please.

Which particular file do you want to unpack its contents?

the end dump file please. the ".bin" file.
