[Tutorial] How to use MTK Bypass to backup or flash secure boot MTK
[Tutorial] How to use MTK Bypass to backup or flash secure boot MTK
14-02-2022, 11:54 AM
(12-02-2022, 03:56 PM)dpol Can this be used to flash a dead phone that the usb is not recognized by the computer? I tried it. It did not work.
If its not detected at all then you need a different approach
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
14-02-2022, 03:25 PM
(14-02-2022, 11:54 AM)hovatekI think it is detected kind of; and that's why the computer kept saying USB device not recognized.(12-02-2022, 03:56 PM)dpol Can this be used to flash a dead phone that the usb is not recognized by the computer? I tried it. It did not work.
If its not detected at all then you need a different approach
25-02-2022, 03:51 PM
This method keeps killing the phone at the ReadbacKÂ stage. I didn't disconnect/remove the phone while there was something going on, but yet, the phone wound not wake... Just like it did before now during the same process?
18-05-2022, 04:48 PM
Its a secure boot device and we're also going to be making use of these tools.Actually, these tools, the download links for them will be in the description. So we're going to start off by installing python.
When installing python, ensure to click Add Python to path then click Install Now.The tool we're going to be using is called MTK bypass. What you need to download is bypass utility and exploit connection.
You can download python and libusb. Links will be in the description. To download from Github, just click on the item you wish to download then click Code. Download Zip. By the way, the developer and contributors to this tool, full credit goes to them. Python is still installing. Successful. You can now close.
Quickly open the command prompt window. Now in command prompt, type and Enter this command. You can right-click to paste then press Enter. Ensure you have an internet connection while running this command. You should get this message; you're using PIP version 20. Once you get this message, you're good to go.
This post was last modified: 22-05-2022, 06:22 AM by hovatek.
19-05-2022, 09:21 AM

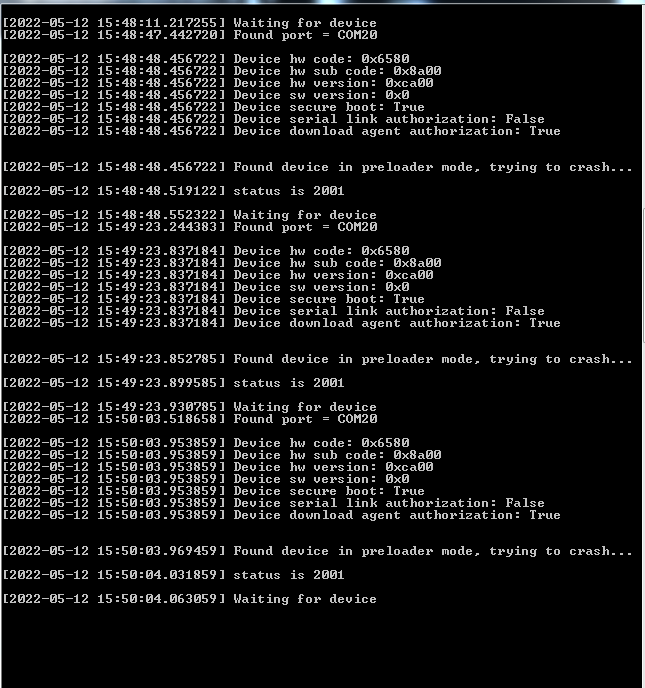

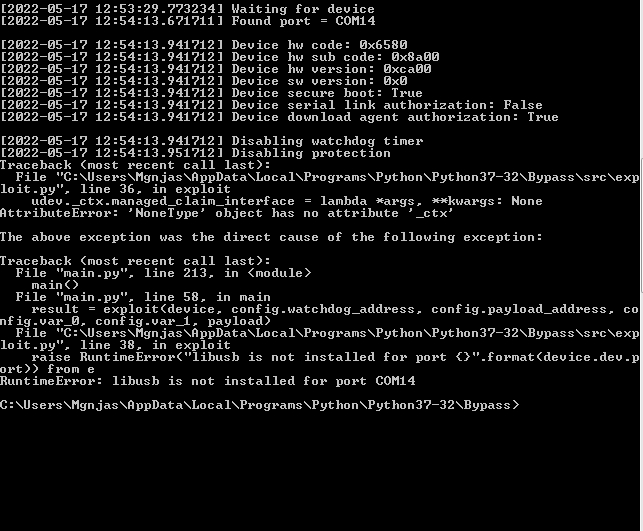

finchalex In this video tutorial, I'm going to be showing how to backup firmware or flash firmware to a Mediatek secure boot device without using a custom download agent. Now, for the sake of this tutorial, I'm going to be using Nokia 3.I tried to use mtk bypass method + sp flash tool,but here its what i got.
Its a secure boot device and we're also going to be making use of these tools.Actually, these tools, the download links for them will be in the description. So we're going to start off by installing python.
When installing python, ensure to click Add Python to path then click Install Now.The tool we're going to be using is called MTK bypass. What you need to download is bypass utility and exploit connection.
You can download python and libusb. Links will be in the description. To download from Github, just click on the item you wish to download then click Code. Download Zip. By the way, the developer and contributors to this tool, full credit goes to them. Python is still installing. Successful. You can now close.
Quickly open the command prompt window. Now in command prompt, type and Enter this command. You can right-click to paste then press Enter. Ensure you have an internet connection while running this command. You should get this message; you're using PIP version 20. Once you get this message, you're good to go.
Tried to install flash single file but when i flash super.img it failed.
This post was last modified: 22-05-2022, 06:23 AM by hovatek.
Attached Files
22-05-2022, 06:28 AM

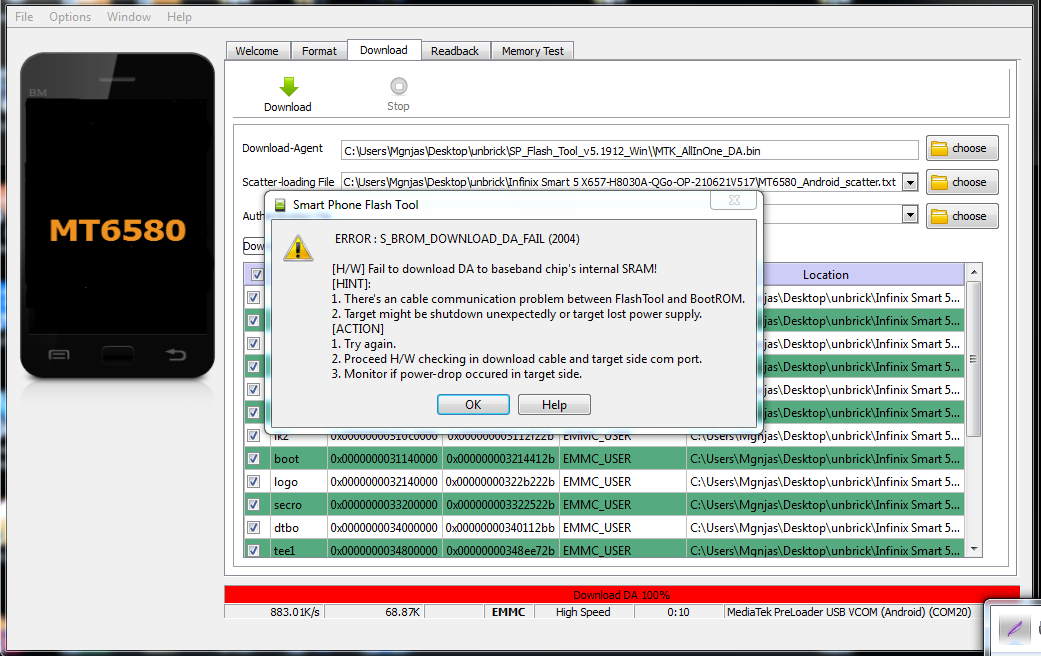

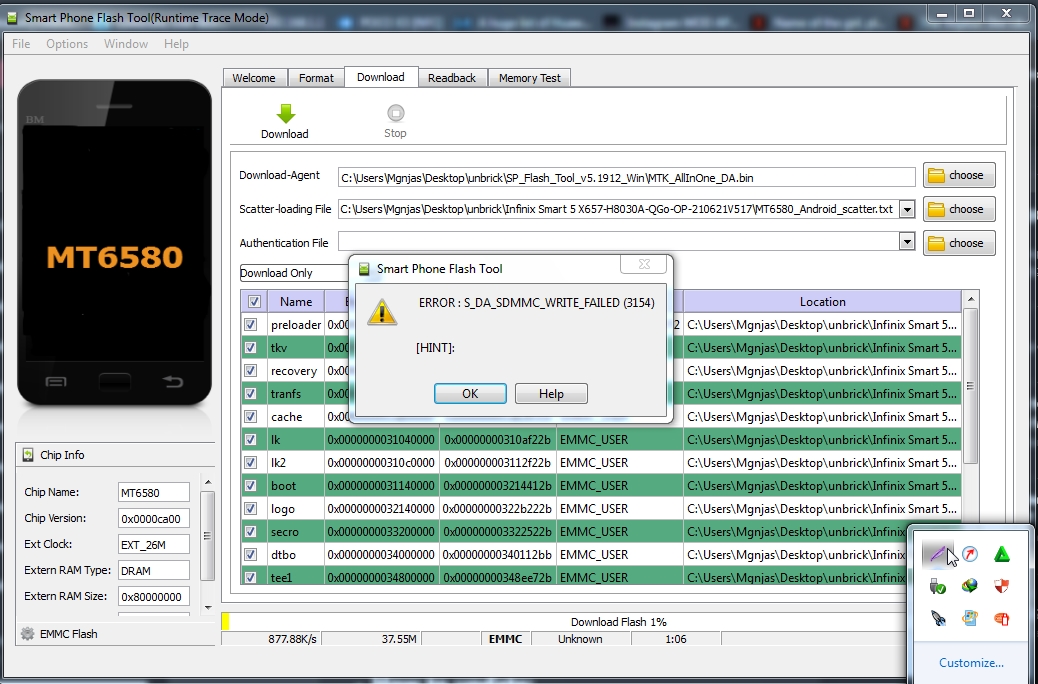

joetheonlyy I tried to use mtk bypass method + sp flash tool,but here its what i got.
Tried to install flash single file but when i flash super.img it failed.
Create a thread by clicking Ask Question at the top..
This post was last modified: 22-05-2022, 06:31 AM by hovatek.
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
16-06-2022, 04:02 PM
My phone is Vivo V11i (MT6771).

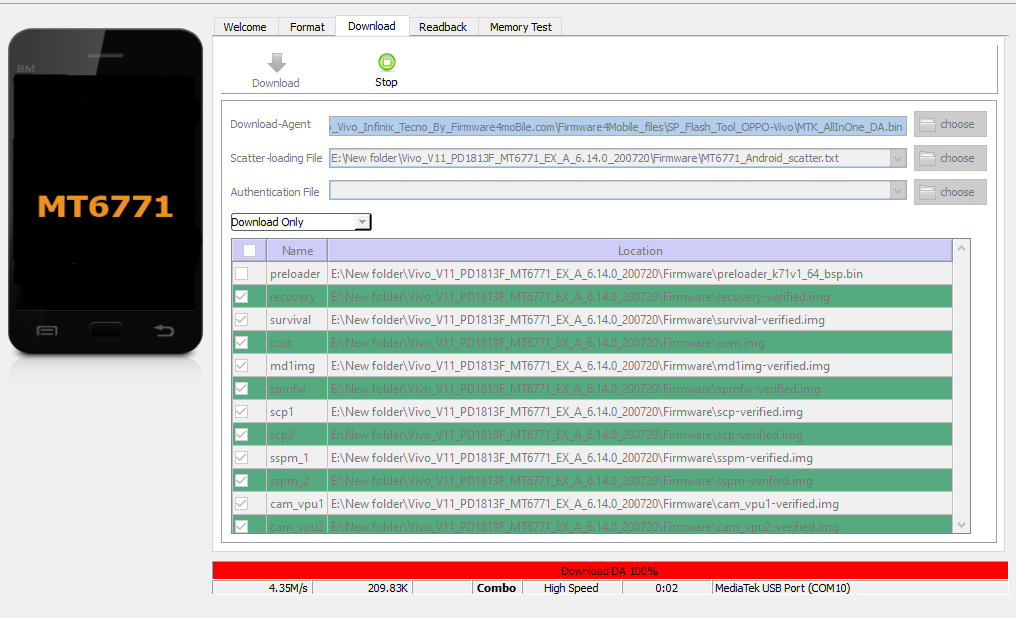

My original problem was that I was getting 100% DA stuck when using SP Flash tool with MCT, or "Error on sending DA"/"unpack requires a buffer of 12 bytes", when using mtk-client. Check the attached screenshots.
Using MCT and mtk-client, they both bypass the DA protection, but I can't do anything beyond that.
Appreciate if anyone assists, I am tearing my hair out for this now.
Attached Files
