This guide will show you how to use miracle box / thunder to fix null IMEI / write IMEI to your mediatek device.

Requirements



Steps to write IMEI onto mediatek device (MTK) using Miracle Box


Follow the steps below to write IMEI to a mediatek device using Miracle box

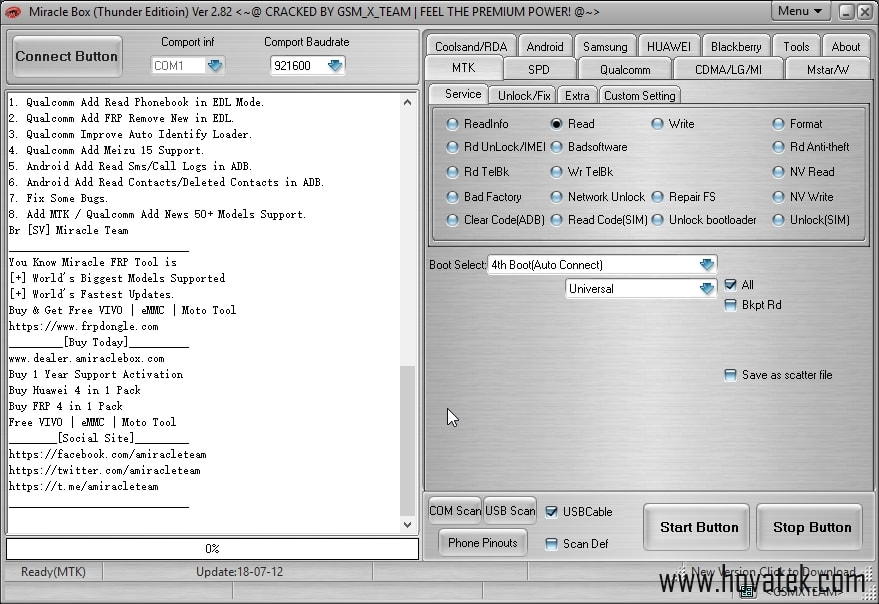

  1. Launch Miracle box

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-1.jpg]

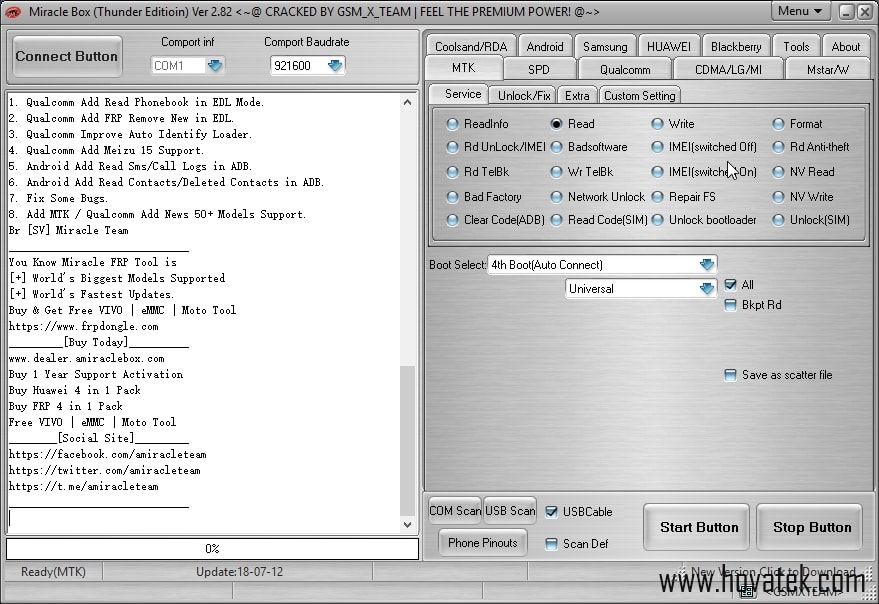

  2. On Miracle box interface, press Control + M to enable IMEI

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-2.jpg]

  3. Tick the check box beside IMEI(switched off)

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-3.jpg]

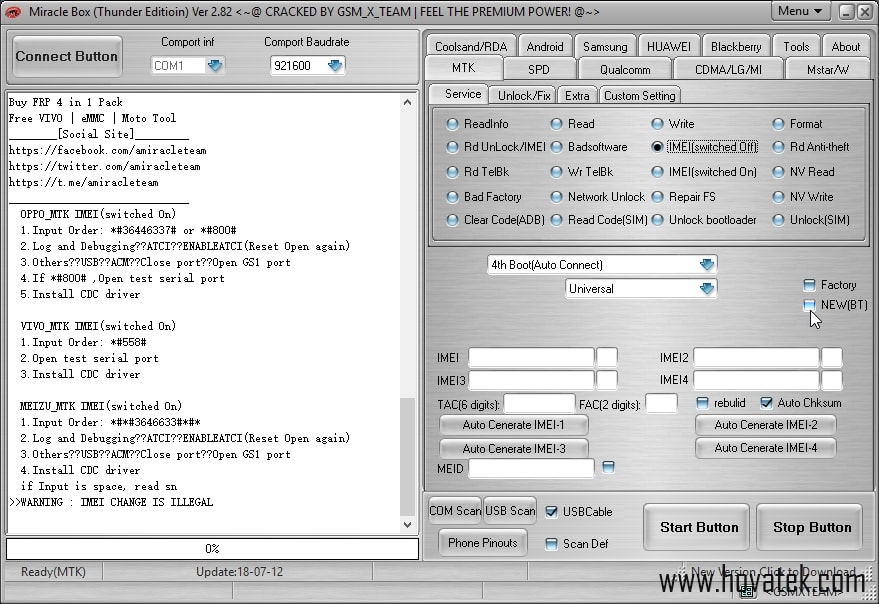

  4. Tick the check box beside NEW(BT)

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-4.jpg]

  5. Leave the phone's chipset type as 4th Boot(Auto Connect)
  6. Input the original IMEI into the IMEI boxes

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-5.jpg]

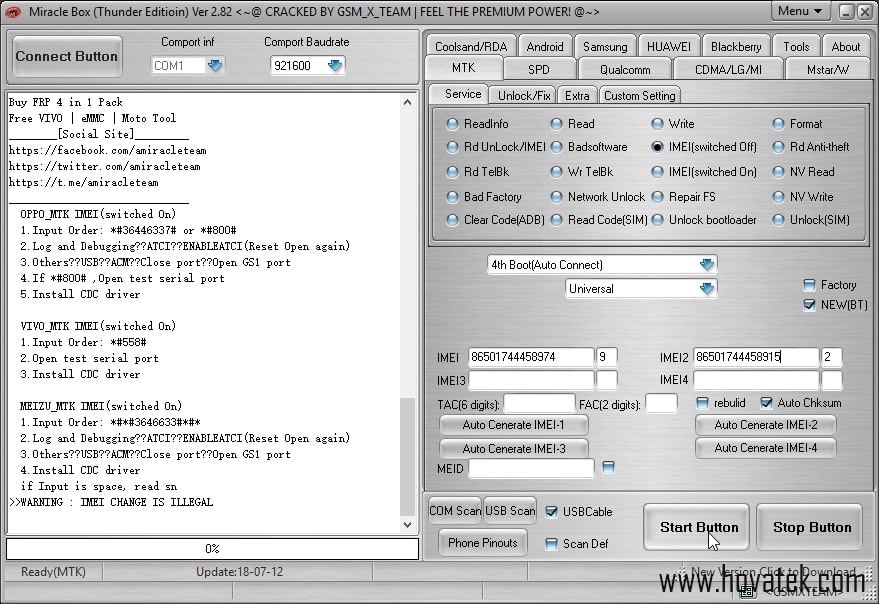

  7. Click Start

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-6.jpg]

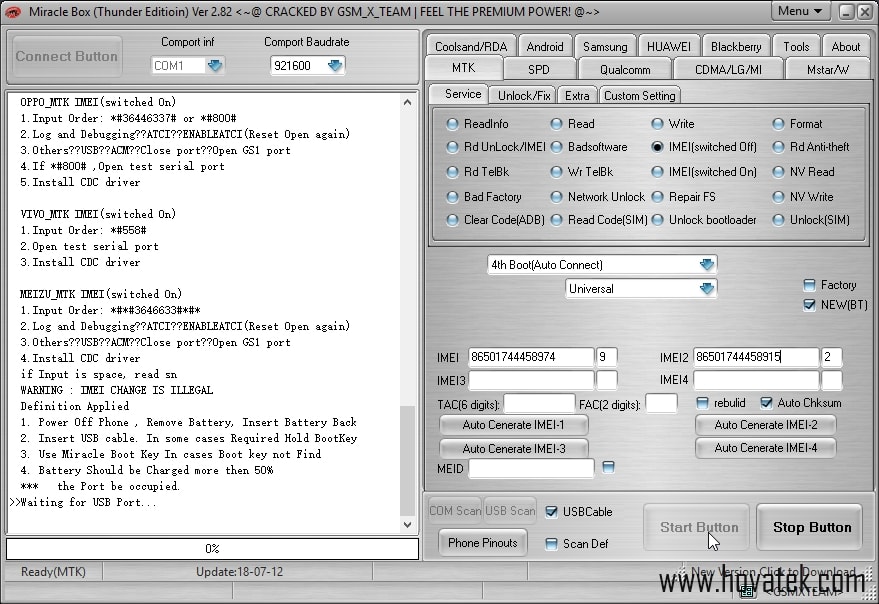

  8. You should now see >>> Waiting for USB Port... At this point, switch off the phone then connect it to the PC via USB cord without holding any buttons

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-7.jpg]

  9. The phone should get detected and IMEI writing should begin

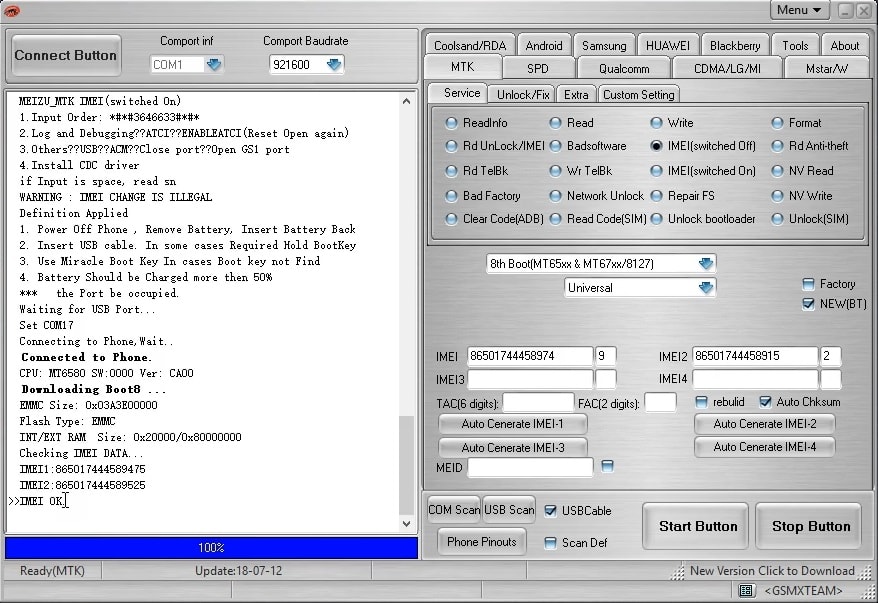

  10. Once the process is complete, you should see 'IMEI OK'

    [Image: How-to-use-Miracle-Box-to-write-IMEI-to-...roid-8.jpg]

Important Notice
  • Best to use latest version of miracle (usually miracle thunder) as it supports more chipsets than older versions
  • Miracle Box requires a hardware box / dongle to work. Merely installing the setup and trying to run the tool (without having connected the hardware to the PC) won't work unless you are using a loader version
  • Using the loader version might trigger an antivirus warning. While this might be a false positive, you are entirely responsible for allowing the loader to run on your PC
  • If this method fails to work for whatever reason then you can always use the other methods
  • If you get the inactive start button error when using Miracle, then see the Miracle Box inactive start button fix

Video Transcript
Quote:In this video tutorial, I'm going to be showing how to write IMEI onto a mediatek android phone using miracle box
So I'm launching miracle box tool. On the miracle box interface, we'll press Ctrl key + M to enable IMEI
Now click IMEI (switched off). Tick the check box beside NEW(BT). This mode will make it connect to the phone using preloader ports
Now write the original IMEI of the device. Finally, we'll click the start button
Once we click start button we'll connect the android phone using USB cable to the PC
You can see the device is connected as preloader
Once IMEI is written successfully, you'll get the message IMEI OK. Now we can disconnect the phone from the PC
Remove the battery, Re-insert the battery and power on the phone to check
So we can see the IMEI we've written 749, 749.
This post was last modified: 04-10-2019, 11:48 PM by X3non.
samzy
samzy
samzy
Newbie
1
12-11-2019, 10:01 AM
#2
This is what is keep showing
" Flash Type: EMMC
INT/EXT RAM Size: 0x40000/0x80000000
Checking IMEI DATA...
No find Phone data(1)
Try Restored IMEI by Format
IF Ok,Then Repair IMEI again!
Definition Applied"
freshtyt
freshtyt
freshtyt
Senior Member
2,949
12-11-2019, 11:08 AM
#3
(12-11-2019, 10:01 AM)samzy This is what is keep showing
" Flash Type: EMMC
  INT/EXT RAM  Size: 0x40000/0x80000000
  Checking IMEI DATA...
  No find Phone data(1)
  Try Restored IMEI by Format
  IF Ok,Then Repair IMEI again!
  Definition Applied"

tick the checkbox beside rebuild then try again
giba
giba
giba
Enthusiastic Member
6
18-01-2020, 08:01 PM
#4
pls can i user restore imei of infinix spark 3 kb7j using miracle box 2.82
xerxes
xerxes
xerxes
Senior Member
8,357
18-01-2020, 11:09 PM
#5



(18-01-2020, 08:01 PM)giba pls can i user restore imei of infinix spark 3 kb7j using miracle box 2.82

Give it a try. Download and load your phone’s DA @ https://www.hovatek.com/forum/thread-23243.html
15-09-2020, 02:24 AM
#6
Flash Type: EMMC
INT/EXT RAM Size: 0x40000/0x30000000
Checking IMEI DATA...
No find Phone data(1)
Try Restored IMEI by Format
IF Ok,Then Repair IMEI again!

I got this error
I already checked the "rebuild" option
hovatek
hovatek
hovatek
Administrator
49,767
15-09-2020, 10:25 AM
#7
(15-09-2020, 02:24 AM)Russel Jr Julius Flash Type: EMMC
INT/EXT RAM Size: 0x40000/0x30000000
Checking IMEI DATA...
No find Phone data(1)
Try Restored IMEI by Format
IF Ok,Then Repair IMEI again!

I got this error
I already checked the "rebuild" option

create a new thread for your device issue by clicking "Ask Question" at the top
in the new thread, state your device model and chipset and attach a screenshot of the error message on the tool
uriandwubber
uriandwubber
uriandwubber
Newbie
3
02-10-2020, 08:01 PM
#8
start button is disabled.
xerxes
xerxes
xerxes
Senior Member
8,357
03-10-2020, 08:42 AM
#9
(02-10-2020, 08:01 PM)uriandwubber start button is disabled.


See fix @ https://www.hovatek.com/forum/thread-14815.html
jbbanasihan86
jbbanasihan86
jbbanasihan86
Newbie
1
03-02-2023, 09:53 AM
#10
I'm stuck at downloading boot8. Please help
