This guide will help you easily regain access to your Mediatek Feature phone after forgetting your Unlock Code or Privacy Code.
Privacy lock is a security tool which helps you to protect your phone by password, such as SMS, Call Logs, Contacts etc. If you've forgotten the password then you cannot be able to access the all the locked applications, the below method helps you read the code without having to download and flash the firmware.

Requirements


Steps to Read Unlock / Privacy Lock Code on MTK Feature Phones Using Miracle Box


follow the below steps to Read Unlock/Privacy Lock on MTK Feature Phones

See the video tutorial below or @ https://youtu.be/4wTO-8Ztsdk

  1. Extract the content of the Miracle Box to your desktop. Open the folder and run "Miracle_Loader_2.27A" (if you're using 2.27a+loader) or just the Miracle_box.exe

    [Image: Hovatek-How-to-bypass-privacy-protection...-Box-7.jpg]

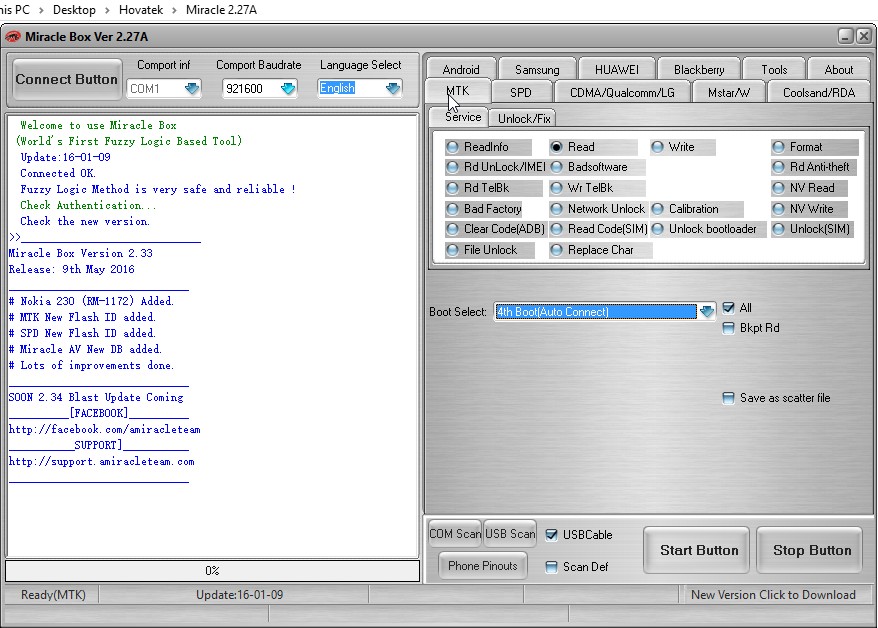

  2. Click on the MTK tab

    [Image: Hovatek-How-to-bypass-privacy-protection...-Box-2.jpg]

  3. Click on Rd UnLock / IMEI

    [Image: how-to-read-unlock-code-feature-phone-1.png]

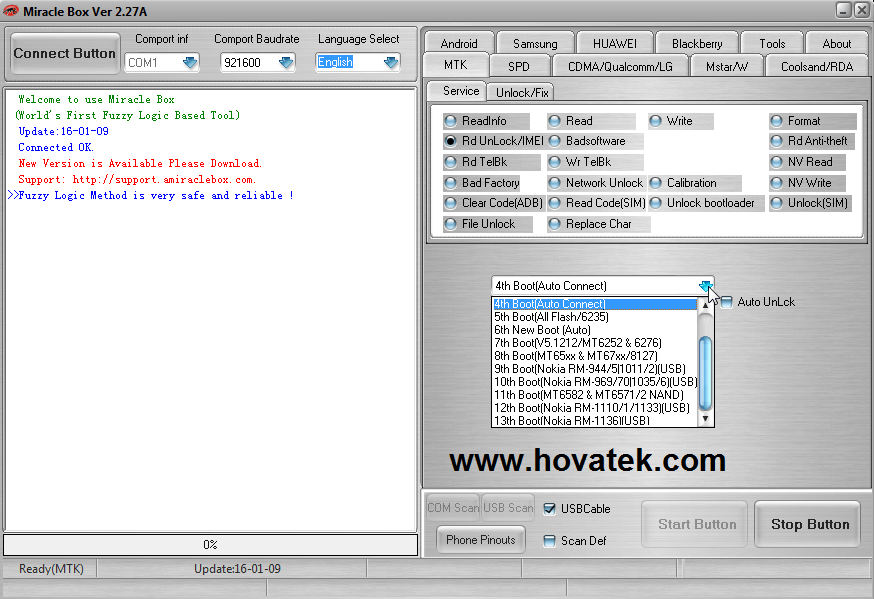

  4. Click the dropdown box and select your chipset type MT**** , if you don't know the chip type just leave it in 4th Boot(Auto Connect)

    [Image: how-to-read-unlock-code-feature-phone-4.png]

  5. Click the Start Button

    [Image: how-to-read-unlock-code-feature-phone-2.png]

  6. Connect the phone to the PC (must be switched off still with battery inside). For some phones, you will have to hold the Boot Key which could be Menu Button, Dial Button or Dial + Menu Button before connecting the phone.

  7. If it is successfully connected, Miracle will scan and display the Unlock Code in Red Color Text as shown on the below image.

    [Image: how-to-read-unlock-code-feature-phone-3.png]

Important Notice
  • Miracle Box ideally requires a hardware box/dongle to run so just installing the Setup (without required hardware) will not work
  • If you get the inactive start button error when using Miracle Box then rectify it using this guide
  • Miracle Box was created by the Miracle Team so credits to them
  • See below image for boot key.
    [Image: boot-key-for-feature-phones-1.jpg]

Video Transcript
Quote:Hello! In this tutorial, I'm going to show you how to read the unlock code of a Mediatek feature phone using Miracle (box). If you don't have Miracle, go ahead and download Miracle on Hovatek.com then open your Miracle. All you need is only the phone and the USB cord.

Download and open Miracle, wait for it to finish loading. Now, when the Miracle has finished loading this. Go to MTK tab, click on Services, then Read Unlock Code. the next thing to do is check your phone's chipset and set your phone's chipset. If you don't know your phone's chipset then leave it on Auto Connect. It will identify your phone's chipset automatically then click Start.

Note! While connecting feature phones, you need to press the phone's boot key. The boot key might be the 0 key, the dialing key, the menu key or any of the keys so take note if you don't know your phone's boot key, just try any of the keys one after the other other till you identify which one is your phone's boot key.

Once you have clicked on Start button then press the boot key and connect your phone using the USB cable. I'm connecting mine now. My own is connected. Just wait for it to read your phone information and it will display the unlock code. Its not going to long. highest / max, only one minute you see that's my phone's unlock code.

If you want, you can even stop it (here), no need to wait for it to finish reading the information because that's the only information you're looking for but if you want you can wait for it to finish. That's all! thank you for watching
This post was last modified: 07-10-2019, 07:54 PM by xerxes.
paeffiong
paeffiong
paeffiong
Senior Member
138
09-02-2018, 01:39 PM
#2
This will surely help me in my line of business
phonesurgeon
phonesurgeon
phonesurgeon
Senior Member
192
18-07-2018, 03:54 PM
#3
None of the keys work for me
Why?

Sent from my GT-N7100 using Tapatalk
freshtyt
freshtyt
freshtyt
Senior Member
2,949
18-07-2018, 07:32 PM
#4
(18-07-2018, 03:54 PM)paafugees None of the keys work for me
Why?

Sent from my GT-N7100 using Tapatalk

you sure the feature phone in question is mtk based?
phonesurgeon
phonesurgeon
phonesurgeon
Senior Member
192
18-07-2018, 08:37 PM
#5



Yes it.
When i insert it shows mtk usb port
I have tried every key but its not connecting to the miracle box.


Sent from my GT-N7100 using Tapatalk
xerxes
xerxes
xerxes
Senior Member
8,357
19-07-2018, 03:44 PM
#6
(18-07-2018, 08:37 PM)paafugees Yes it.
When i insert it shows mtk usb port
I have tried every key but its not connecting to the miracle box.


Sent from my GT-N7100 using Tapatalk

What's the phone's model?
Make sure to properly install vcom drivers using https://www.hovatek.com/forum/thread-440.html .
Also, you can reset code using https://www.hovatek.com/forum/thread-13335.html
This post was last modified: 19-07-2018, 03:45 PM by xerxes.
phonesurgeon
phonesurgeon
phonesurgeon
Senior Member
192
19-07-2018, 04:04 PM
#7
Tecno t401

Sent from my GT-N7100 using Tapatalk
xerxes
xerxes
xerxes
Senior Member
8,357
19-07-2018, 05:28 PM
#8
(19-07-2018, 04:04 PM)paafugees Tecno  t401

Sent from my GT-N7100 using Tapatalk

Does device manager refreshes when you connect the phone?
Try https://www.hovatek.com/forum/thread-13335.html
phonesurgeon
phonesurgeon
phonesurgeon
Senior Member
192
19-07-2018, 08:19 PM
#9
(19-07-2018, 04:04 PM)paafugees Tecno  t401

Sent from my GT-N7100 using Tapatalk

Does device manager refreshes when you connect the phone?
Try https://www.hovatek.com/forum/thread-13335.html
[/quote]
Yes it does, it connects as mtk usb port.
Do i have to see preloader?

Sent from my GT-N7100 using Tapatalk
maxpayne
maxpayne
maxpayne
Intern
3,907
20-07-2018, 10:34 AM
#10
(19-07-2018, 08:19 PM)paafugees Yes it does, it connects as mtk usb port.
Do i have to see preloader?

Sent from my GT-N7100 using Tapatalk

Try SP Multiport tool https://www.hovatek.com/forum/thread-23311.html



Sent from my Infinix X510 using Hovatek Mobile
