[Tutorial] How to change boot logo on an MTK phone (NOT bootanimation)
[Tutorial] How to change boot logo on an MTK phone (NOT bootanimation)
07-02-2015, 04:24 AM
This guide explain how to change Boot logo. BOOT LOGO here refers to the very first image that displays just before the bootanimation. In most cases it's usually the phone manufacturer brand name
Requirements
- Logo.bin for your phone which you can get by dumping firmware of your phone. Dump firmware from your device using Miracle Box or Wwr-MTK tool OR download firmware for your device model then extract logo.bin from within the firmware
- Download Logo Builder v1.6 @ https://mega.nz/file/54J1wIjK#loA6H1zU8T...AMPWO_3Aig
How to Change BootLogo on an MTK Phone
The steps below explain how to change bootLogo on an MTK Phone
See the video tutorial below or @ https://youtu.be/1EiuIV_cNHA- Extract the logobuilder and run logobuilder.exe
![[Image: how-to-change-boot-logo-on-mtk-device-1.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/09/how-to-change-boot-logo-on-mtk-device-1.png)
- Click on "create new project"
- Locate and select your logo.bin file
- Select the new project folder (preferably the LogoBuilder_v1.6 folder)
- For certain logo.bin files (especially those from higher android versions), you might be prompted with an "Image size" window, simply use the scroll bar on the right hand side to find your screen-size (the image will be crystal clear as compared to the other distorted images) before clicking OK
![[Image: how-to-change-boot-logo-on-mtk-device-3.jpg]](https://www.hovatek.com/blog/bpyeki/uploads/2019/10/how-to-change-boot-logo-on-mtk-device-3.jpg)

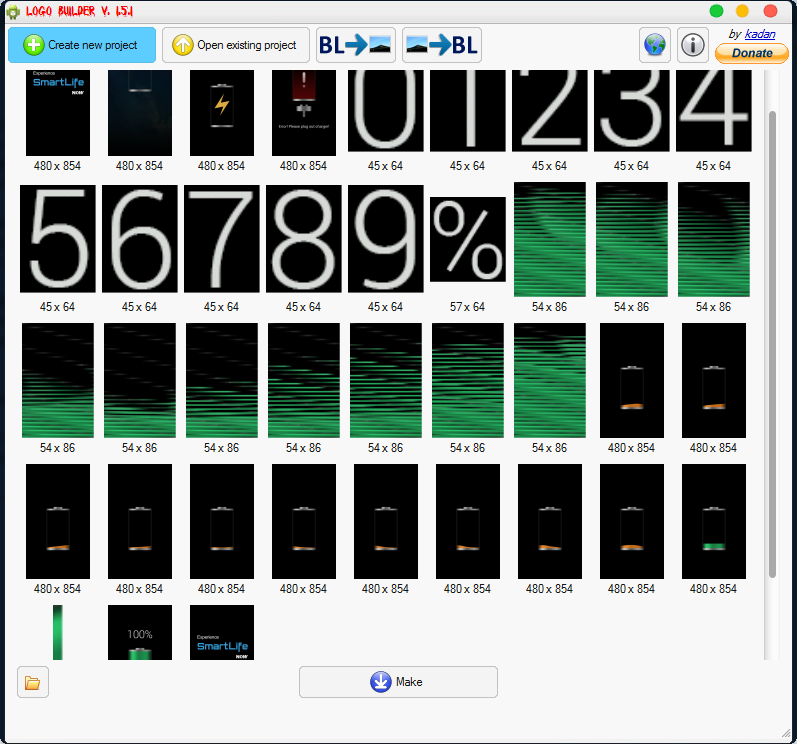

- Logobuilder will auto. extract the contents of logo.bin file
![[Image: how-to-change-boot-logo-on-mtk-device-2.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/09/how-to-change-boot-logo-on-mtk-device-2.png)
- Some images might still look distorted, simply click on the image dimension (e.g of image dimension is 10 x 10) just below the image itself and the "image size" window will be launched, you can then move the vertical slider till you find the right clear image then click Ok
- Minimise the logobuilder
- Now visit the project's folder and change/edit the bootlogo image. in my case its the first and last image
- If you are changing the image remember to resize your new image to the exact screen size of the old image
- Go back to logobuilder and click on "MAKE"
- You should get two files inside the project's folder.
- logo.bin which can be flashed using SPft and update.zip which can be flashed using a custom recovery.
Important Notice
- This tool only works for MTK phones
- This tool can only modify logo.bin file but can't flash it; You must flash the update.zip using a custom recovery or flash the new logo.bin using SP flash tool or Miracle Box depending on how you obtained the logo.bin
- If you want to change bootlogo on a Spreadtrum Phone, then see How to change the bootlogo on an SPD Phone
- This tool was created by ankadnikov of XDA so credits goes to him for the tool
This post was last modified: 23-07-2024, 11:15 AM by hovatek.
Attached Files
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
19-03-2016, 09:21 AM
(11-04-2015, 10:33 AM)X3non(10-04-2015, 11:34 PM)kay4dam69 do i stil nid to install cwm recovery on my tecno p5 if necesary because i have my mtk backup already.
yes. if you dont wish to flash created logo.bin through spft. its simpler to flash the created update.zip through cwm
19-03-2016, 03:11 PM
Sent from my Infinix X510 using Hovatek mobile
20-03-2016, 06:27 AM
Sent from my Infinix X510 using Tapatalk
