This guide will explain how to use WWR_MTK v2.51 to backup or dump a Mediatek device's firmware. If you're using v2.30 then follow our WWR_MTK v2.30 guide.

Requirements

  • Download Wwr_MTK tool
  • Download template.zip @ [ Login to download]  & extract template.ini into wwr folder, replacing the existing file (this will add recent chipset types to the list in step 5 in the guide below)
  • Download SP flash tool
  • Download Notepad++
  • Download and Install Vcom Preloader Driver
  • Windows PC
  • MTK Phone

Steps to use WWR v2.51 + SP Flash tool to backup Mediatek firmware


Follow the steps below to use Wwr_MTK v2.51 tool + SP flash tool to backup Mediatek firmware

See the video tutorial below or at https://youtu.be/pj4iFakq33M

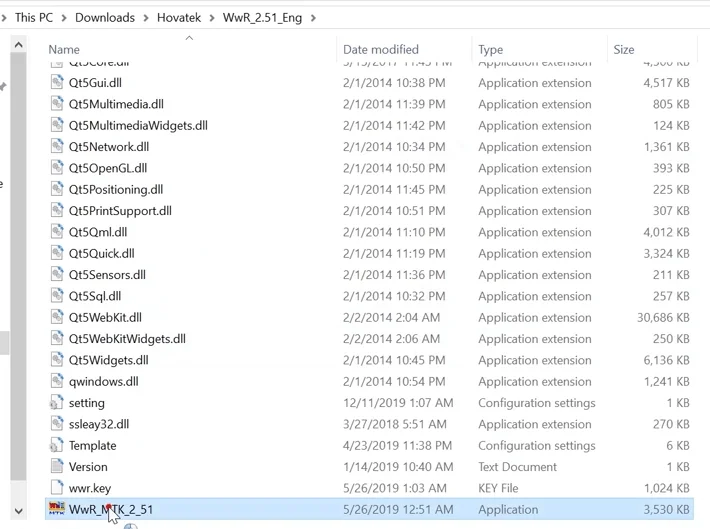

  1. Launch WWR

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-1.webp]

  2. You should see the WWR dashboard

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-2.webp]

  3. Click Auto Mode

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-3.webp]

  4. Click Generate empty scatter file

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-4.webp]

  5. Select your device chipset type from the list [use the app @ https://www.hovatek.com/forum/thread-13054.html to verify your chipset] and if your chipset is not listed then scroll to the end of the list and select "Add" to add your chipset type

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-5.webp]

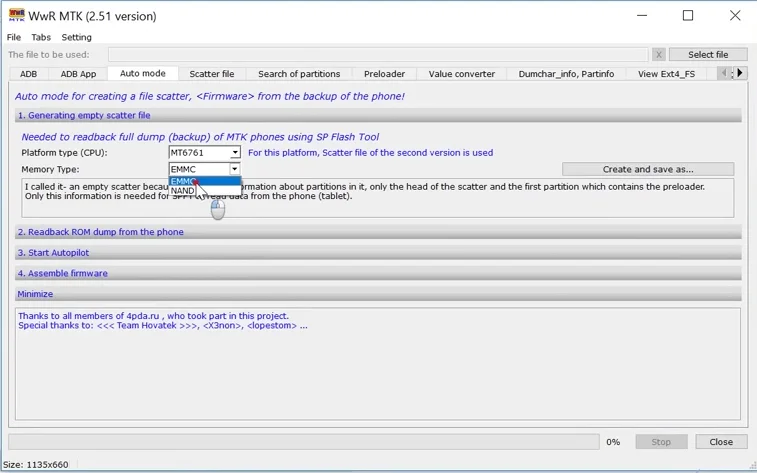

  6. Choose your device's memory type

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-6.webp]

  7. Click Create and save as

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-7.webp]

  8. Open the folder you wish to save the scatter file then click Save

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-8.webp]

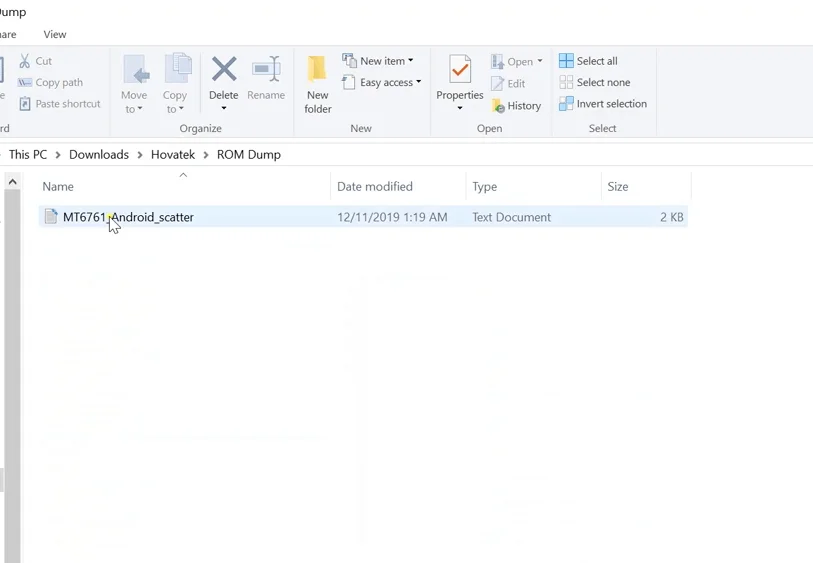

  9. You should see the scatter.txt file

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...are-9.webp]

  10. Launch SP Flash tool

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-10.webp]

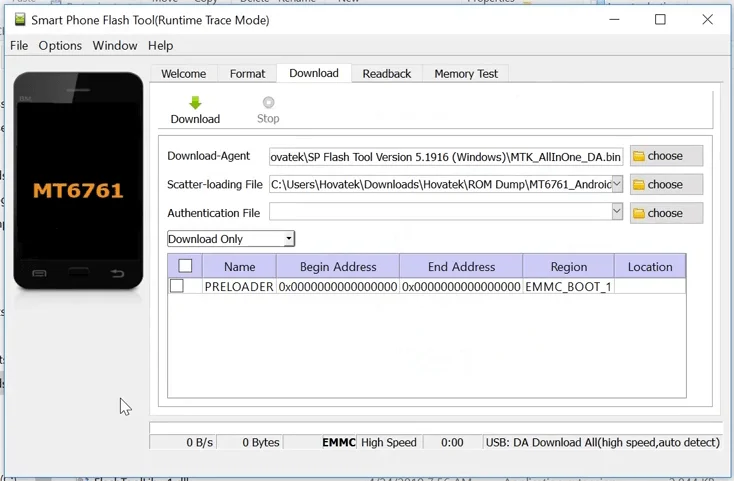

  11. You should see the SP flash tool dashboard

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-11.webp]

  12. Click Choose in front of Scatter-loading file

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-12.webp]

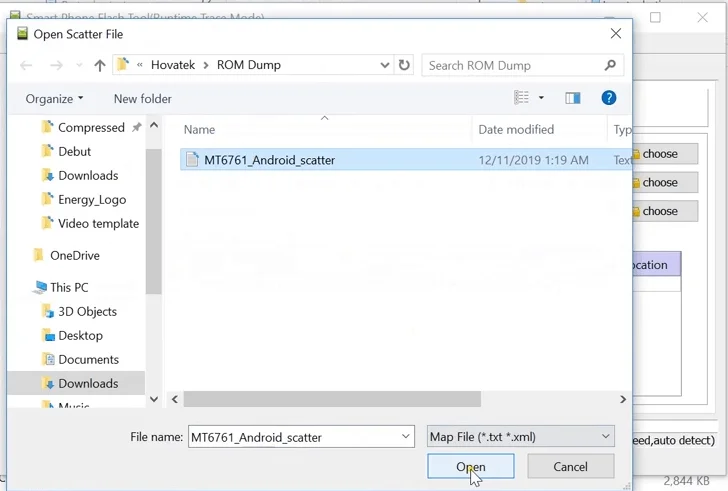

  13. Select the scatter file from WWR

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-13.webp]

  14. Click Readback

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-14.webp]

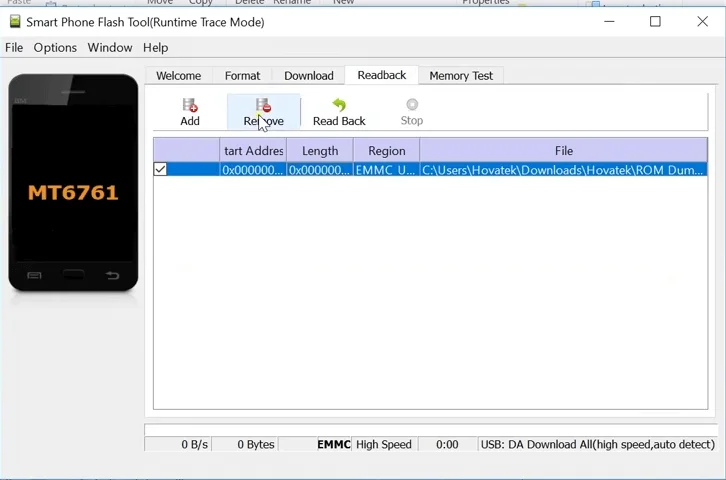

  15. Highlight and remove all entries

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-15.webp]

  16. Click Add

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-16.webp]

  17. Double-click the new entry, a window will popup

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-17.webp]

  18. Give it a name then click Save (this will be the raw preloader)

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-18.webp]

  19. Open the scatter file in Notepad++

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-19.webp]

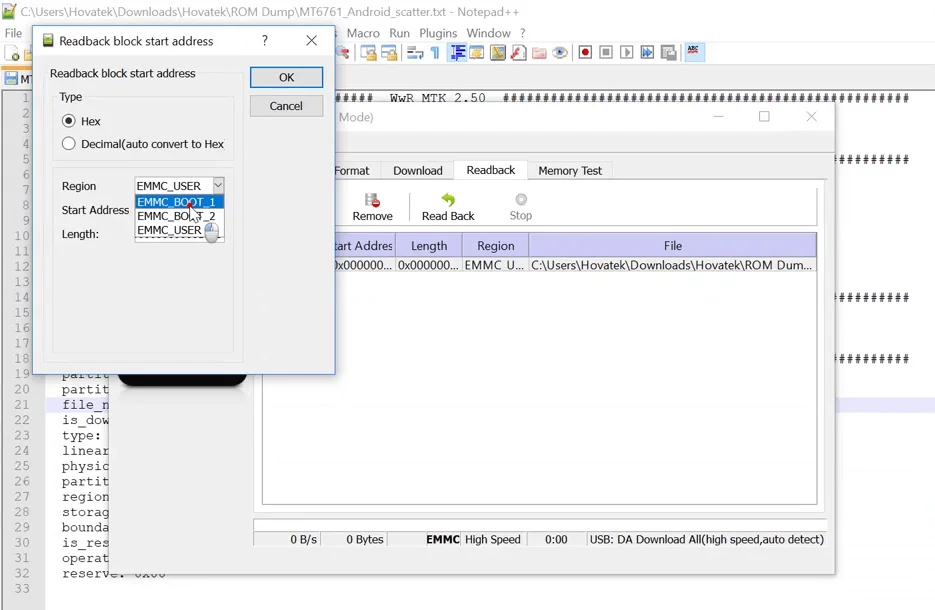

  20. Go back to SP flash tool and change the region to EMMC_BOOT_1

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-20.webp]

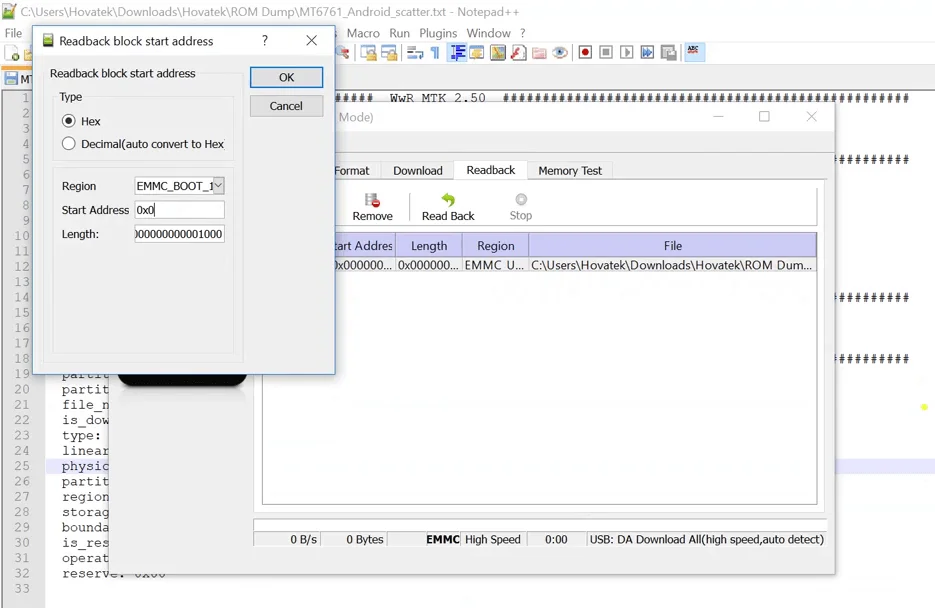

  21. Set Start Address to 0x0

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-21.webp]

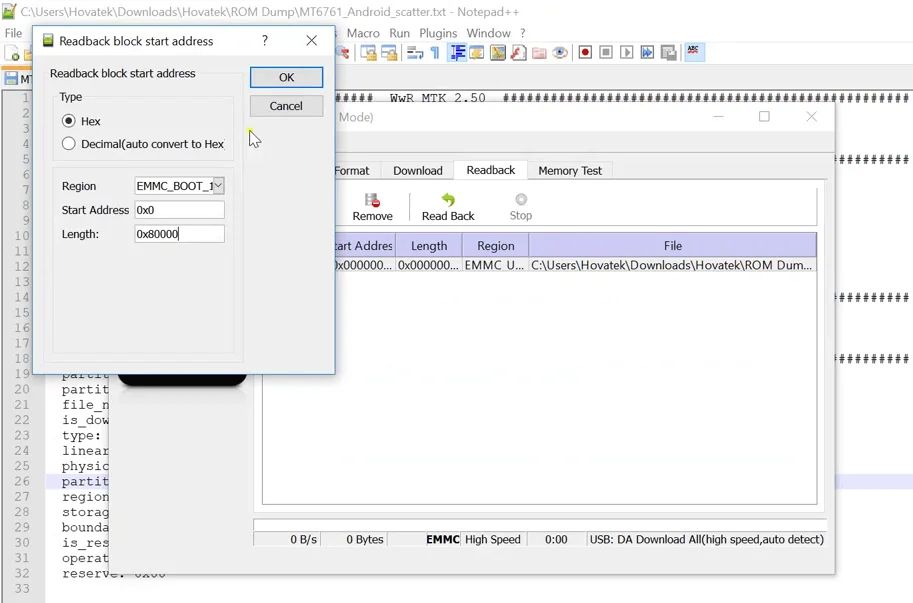

  22. Copy the partition_size for preloader from the scatter file and paste it under length

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-22.webp]

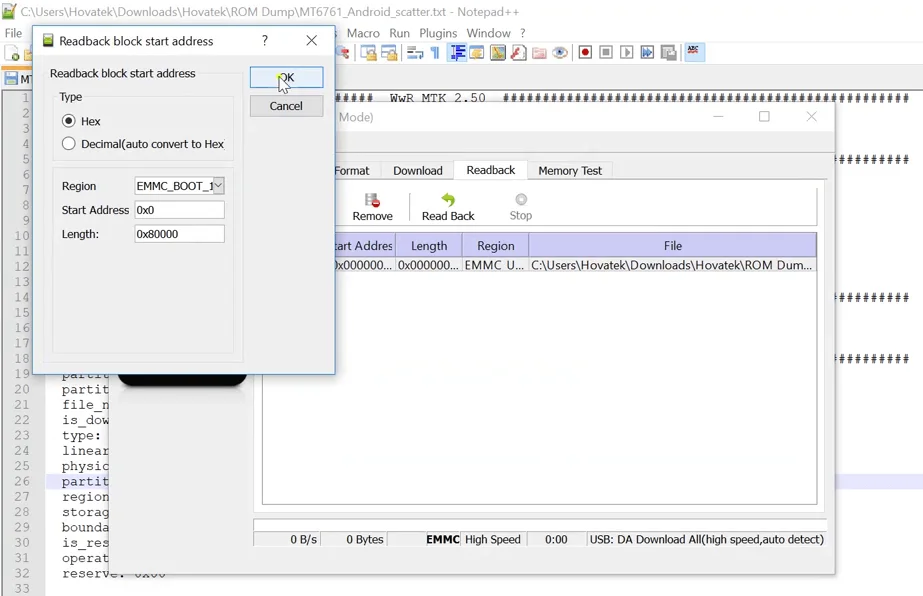

  23. Click OK

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-23.webp]

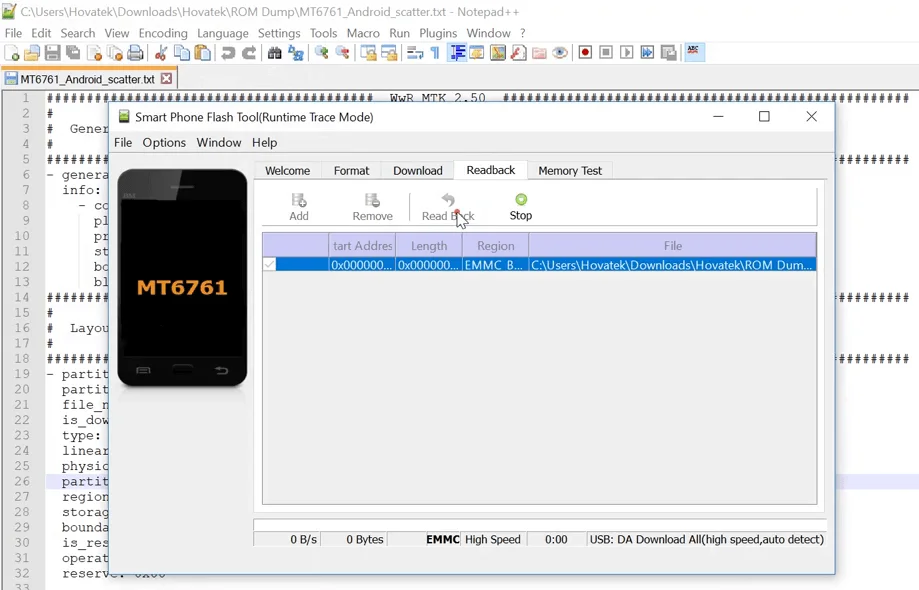

  24. Click readback then connect the device while powered off

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-24.webp]

  25. You should get success once the readback is completed

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-25.webp]

  26. Confirm that you see the file in the destination folder

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-26.webp]

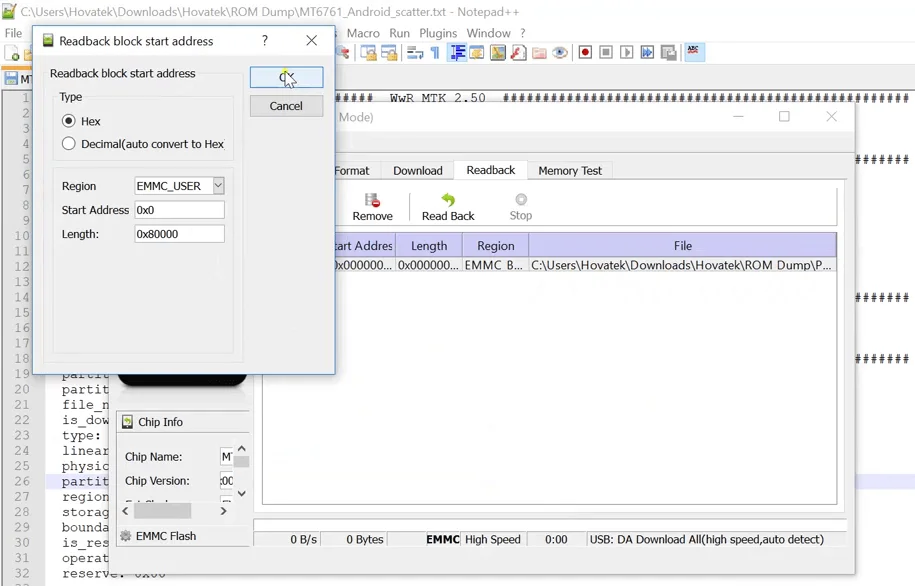

  27. Repeat the process with the same values except region will be EMMC_USER (this will be pgpt)

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-27.webp]

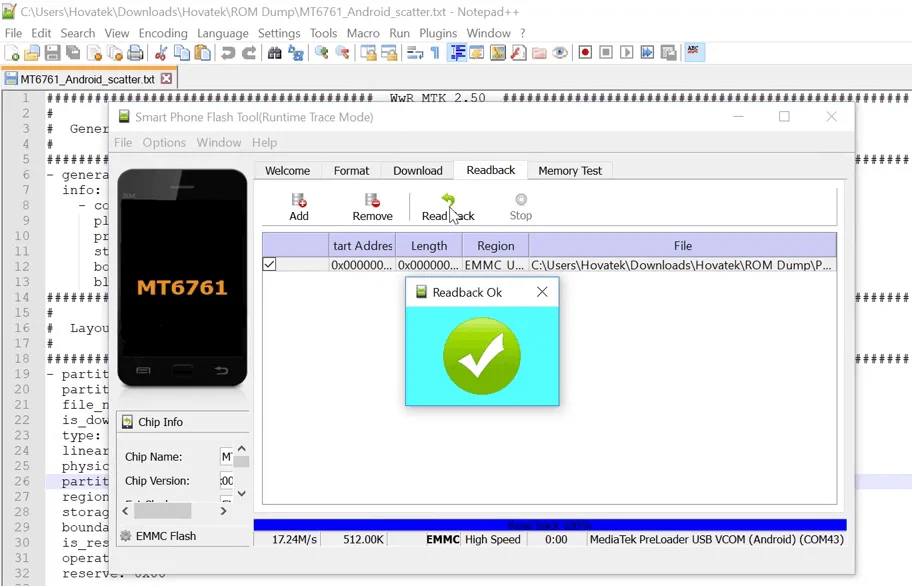

  28. You should get a success message after readback

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-28.webp]

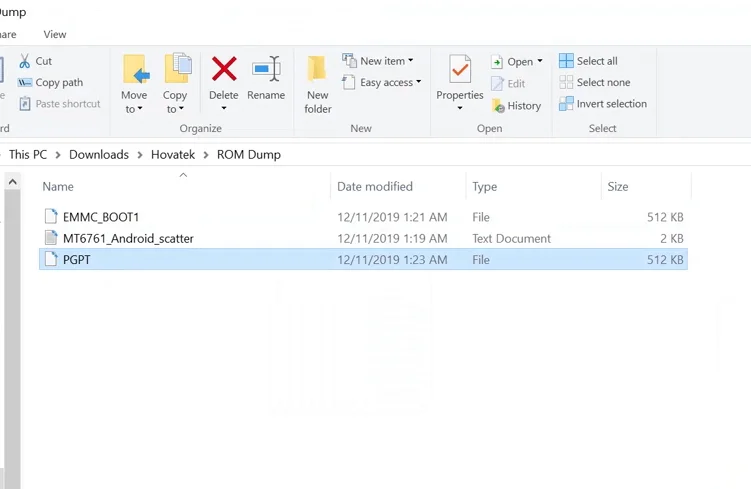

  29. Confirm that both files are in the same folder

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-29.webp]

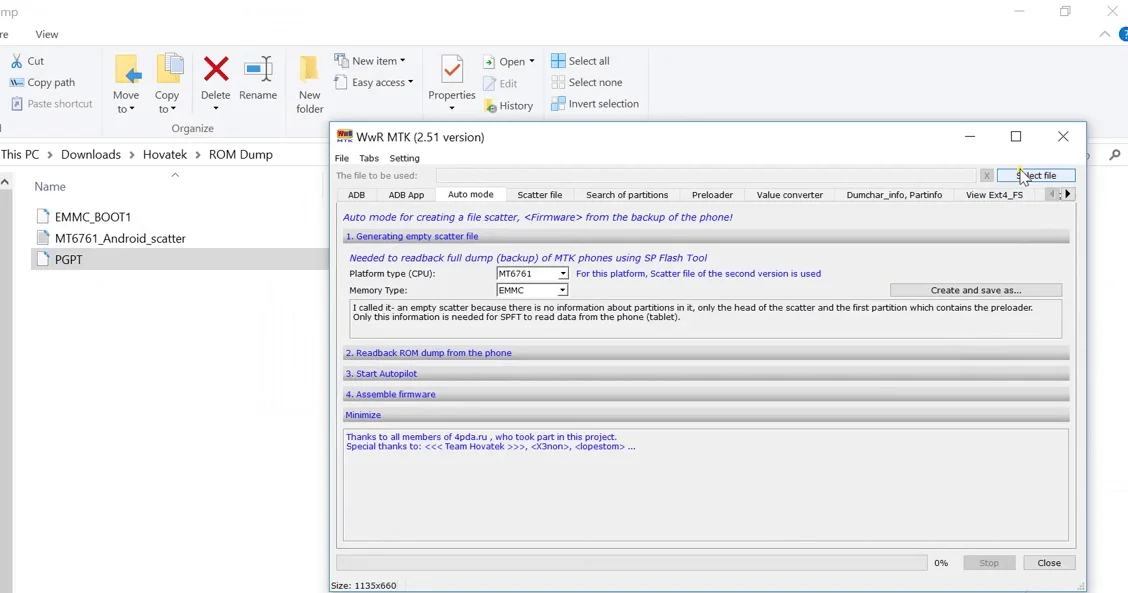

  30. Go back the WWR and click Select file

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-30.webp]

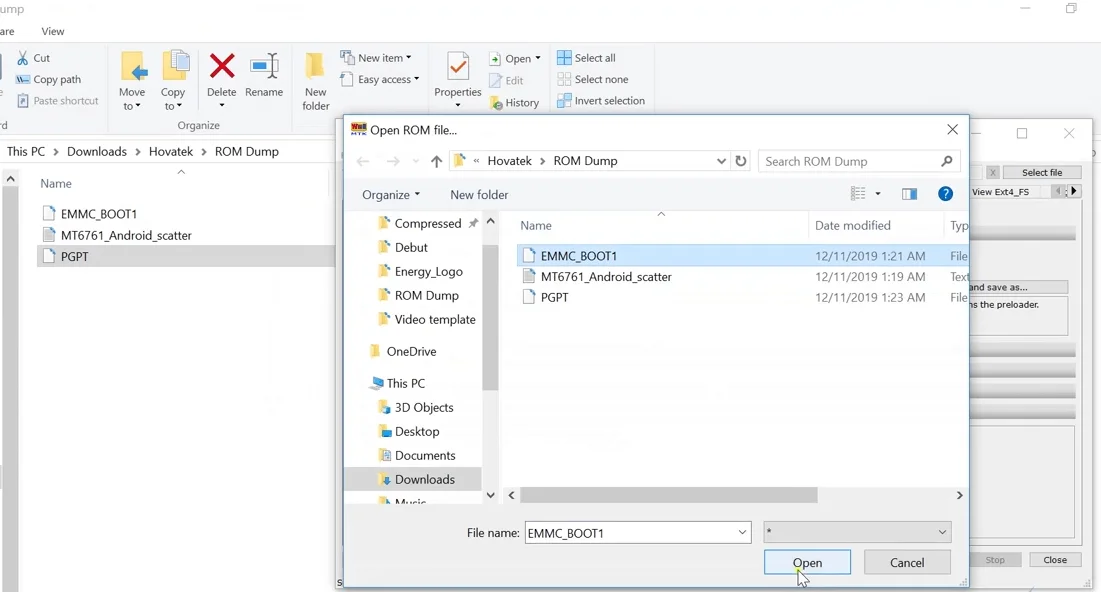

  31. Choose the first dump (raw preloader)

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-31.webp]

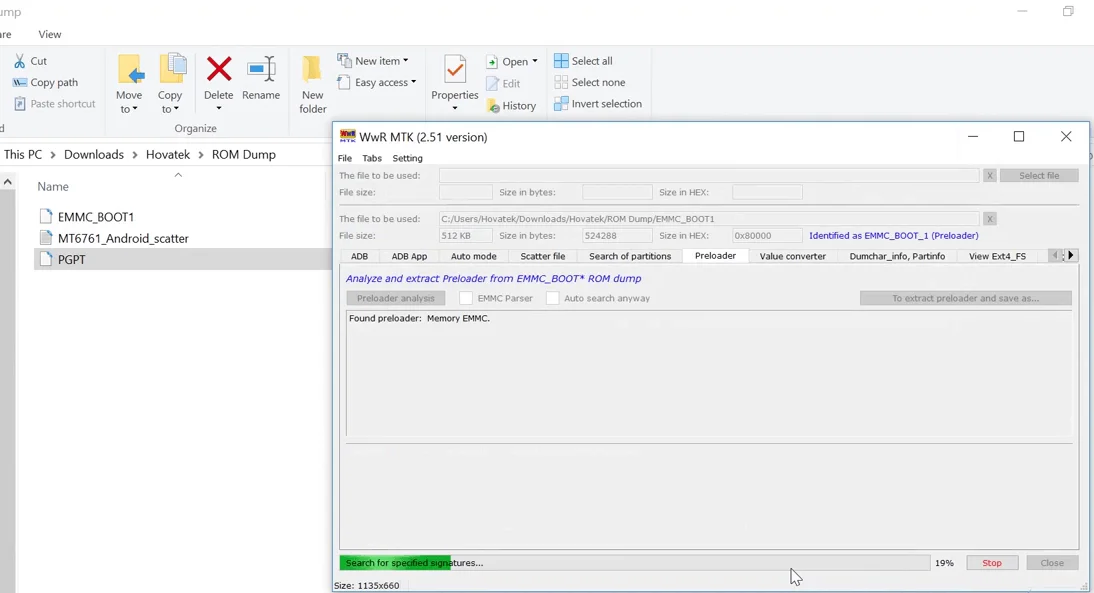

  32. Wait while it loads

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-32.webp]

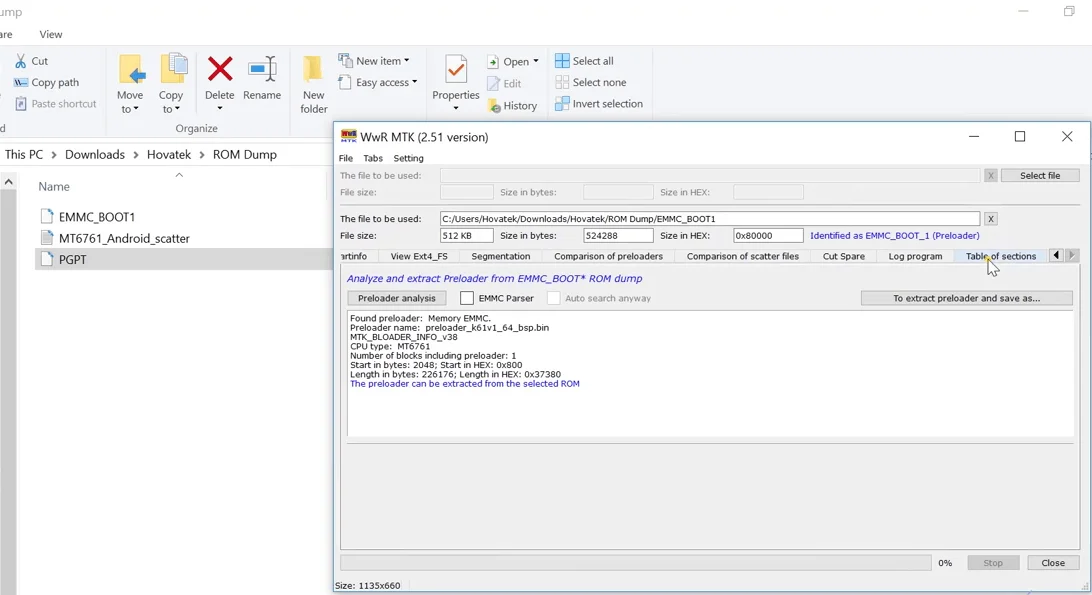

  33. You may click To extract preloader and save as.. if you wish to get the final preloader

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-33.webp]

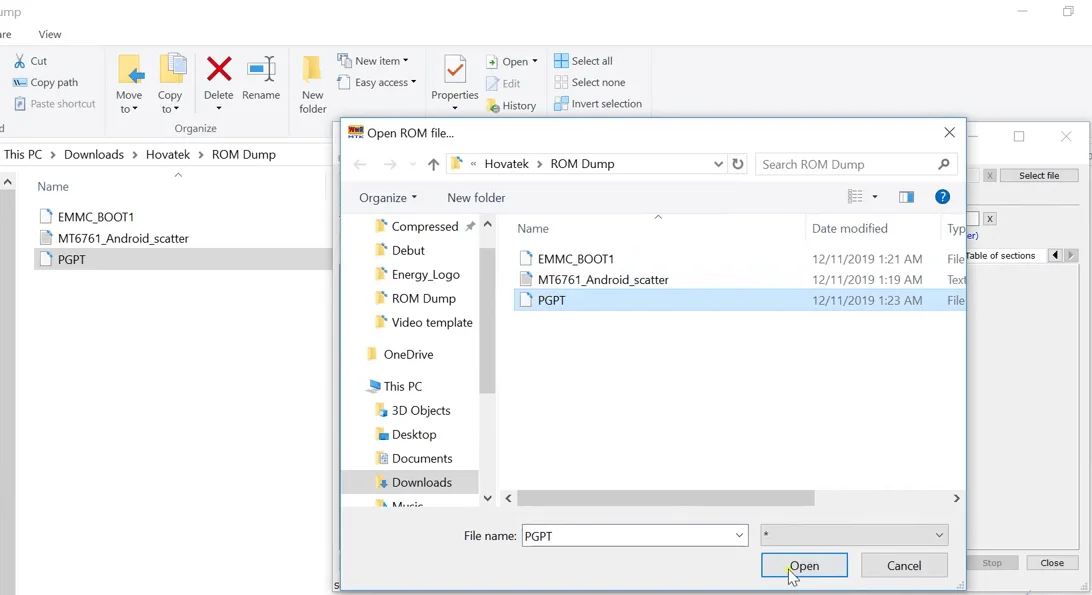

  34. Click Select file and choose the second dump (pgpt)

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-34.webp]

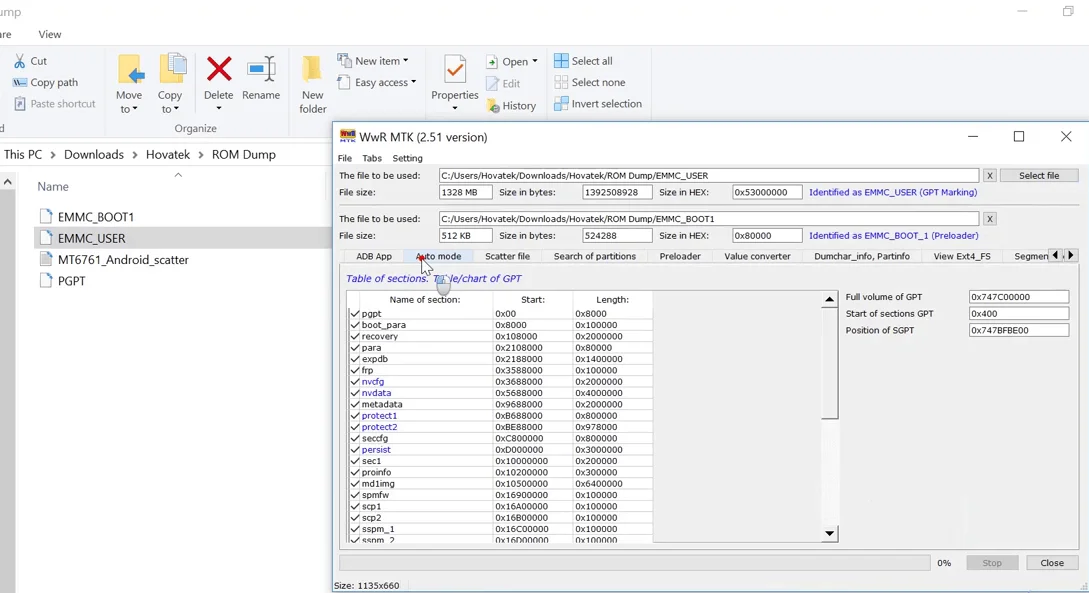

  35. Scroll to the table of sections tab to view all partitions

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-35.webp]

  36. For a full dump, your length value would be the Full volume of gpt on the right

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-36.webp]

  37. To exclude certain partitions, your length value would the the start address of the partition below the last one you wish to dump e.g right-clicking and copying the start address for system will stop the dump at vbmeta and exclude system downwards

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-37.webp]

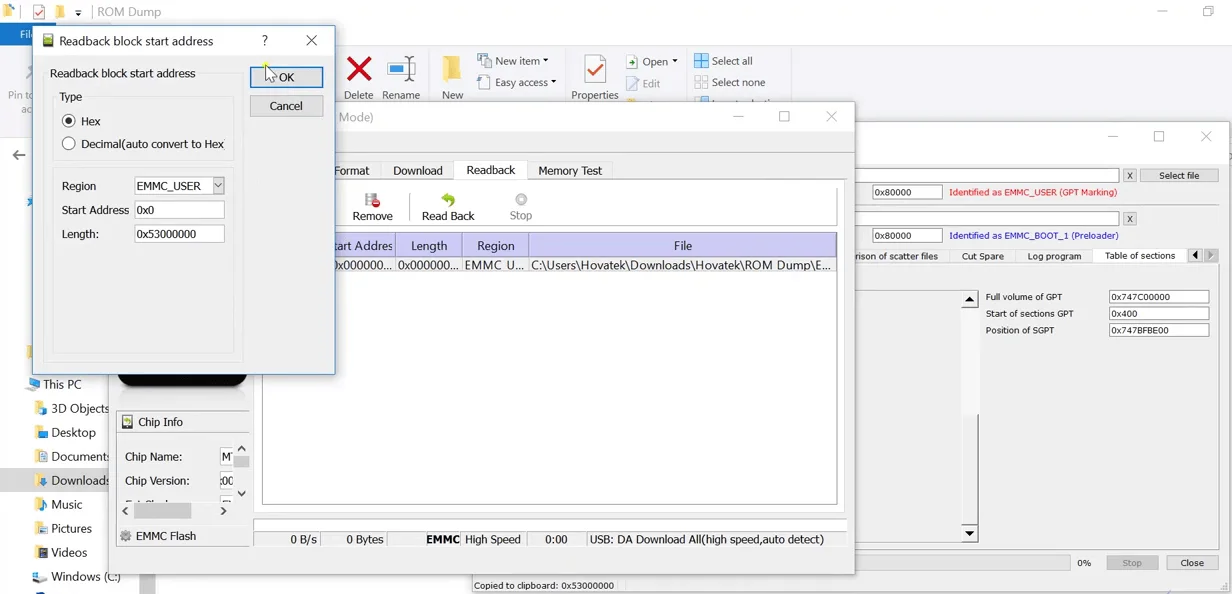

  38. Do a dump with region and EMMC-USER, start address as 0x0 and your length value then click OK

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-38.webp]

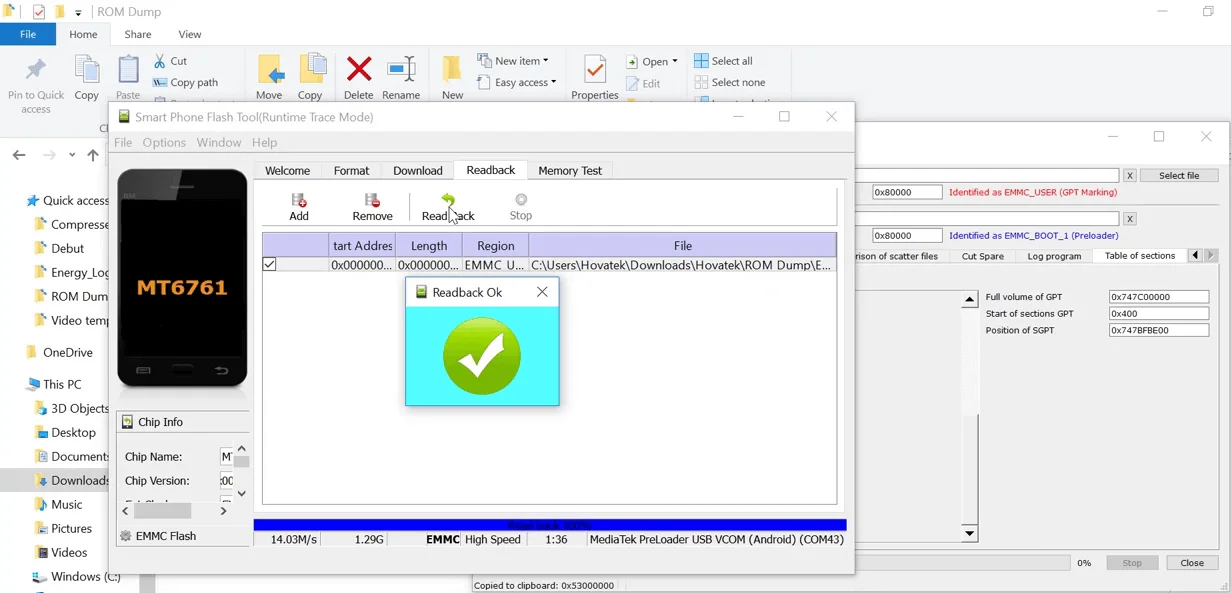

  39. You should get a success message after readback

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-39.webp]

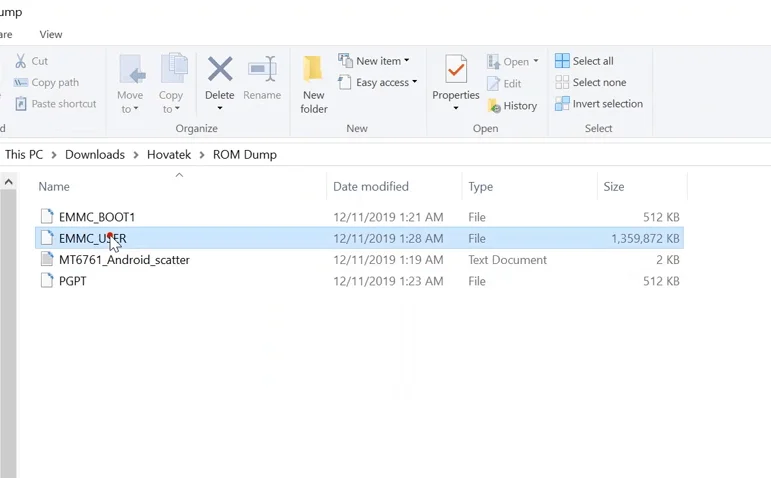

  40. Confirm that you see the full dump

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-40.webp]

  41. Click Select file in WWR

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-41.webp]

  42. Select the full dump and click Open

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-42.webp]

  43. Click Auto mode

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-43.webp]

  44. Click Start autopilot

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-44.webp]

  45. Tick Identify platform (information from LK, binary search) then click Start process

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-45.webp]

  46. Wait while it loads

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-46.webp]

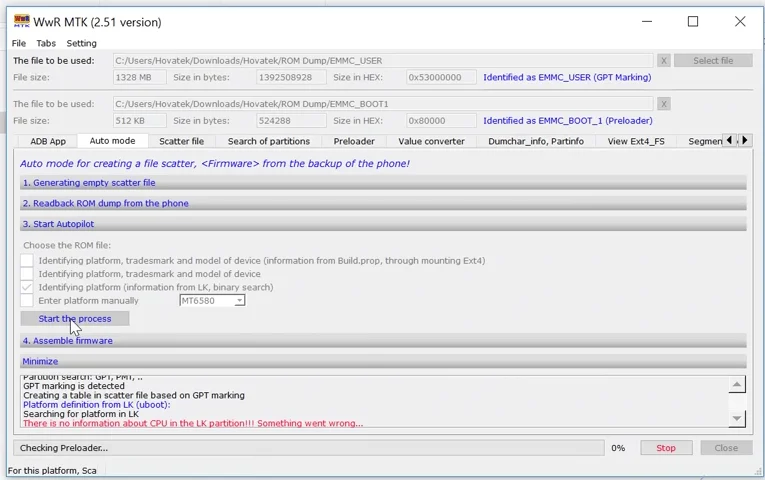

  47. Ignore the There is no information about CPU in the LK partition error

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-47.webp]

  48. If you're uncertain of what to click then choose Cut the ROM as it is

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-48.webp]

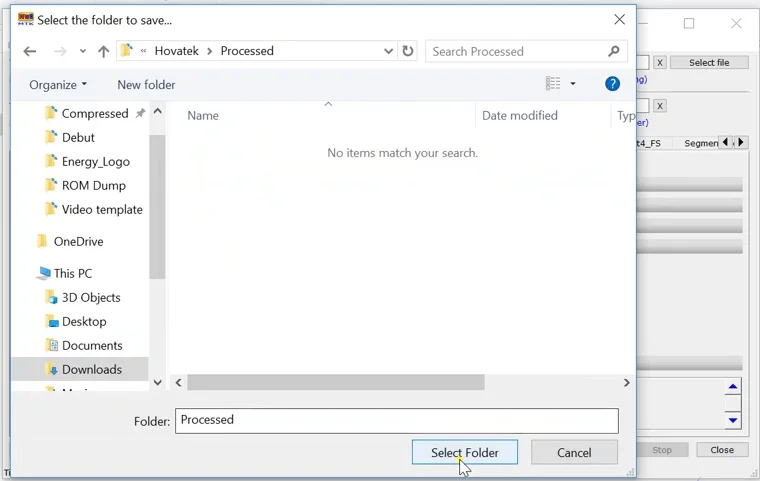

  49. Choose the destination folder for the cut ROM

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-49.webp]

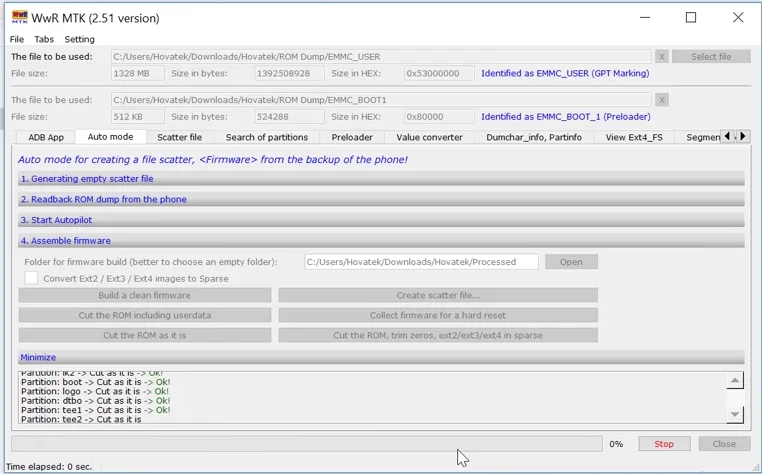

  50. Wait while the ROM gets cut

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-50.webp]

  51. Once done, you should find the dump in the folder you chose

    [Image: how-to-use-wwr-v2.51-and-sp-flash-tool-t...re-51.webp]
This post was last modified: 31-10-2023, 12:34 AM by hovatek.
Note!
We have a reply schedule for Free Support. Please upgrade to Private Support if you can't wait.
Reply
Reply
AH113
AH113
AH113
Newbie
Find
2
03-01-2024, 10:08 PM
#2
(31-10-2023, 12:22 AM)hovatek This guide will explain how to use WWR_MTK v2.51 to backup or dump a Mediatek device's firmware. If you're using v2.30 then follow our ...

THANK YOU .
This post was last modified: 16-01-2024, 12:53 PM by hovatek.
Reply
Reply
AH113
AH113
AH113
Newbie
Find
2
03-01-2024, 10:09 PM
#3
THANK YOU .
Reply
Reply
ovehbe
ovehbe
ovehbe
Newbie
Find
1
23-04-2024, 07:58 PM
#4
Hi, I did everything like the tutorial and everything went fine. But when I flashed the rom it boots to fastboot.
Reply
Reply
maxpayne
maxpayne
maxpayne
Intern
Find
4,332
29-04-2024, 04:54 PM
#5



(23-04-2024, 07:58 PM)ovehbe Hi, I did everything like the tutorial and everything went fine. But when I flashed the rom it boots to fastboot.

Some partitions are device-specific
Note!
We have a reply schedule for Free Support. Please upgrade to Private Support if you can't wait.
Reply
Reply
wesrurede
wesrurede
wesrurede
Newbie
Find
1
26-05-2024, 02:44 AM
#6
I get the miss match error scatter file type emmc ; media type ufs. I have a scatter file from a download that looks simmilar to the one generated with wwr mtk. Any suggestions?
Reply
Reply
kelvinchinedu
kelvinchinedu
kelvinchinedu
Contributor
Find
1,596
28-05-2024, 09:14 AM
#7
U must use the generated one
Reply
Reply
uken86
uken86
uken86
Newbie
Find
1
02-06-2024, 01:59 AM
#8
I have infinix hot 10 x682c mt6768 device,
my device is secure boot enabled , so i cant perform backup as this tutorial..
my question is: how to disable secure boot permanently on this device , so i dont have to use tool such as mtk sec disable, nor mtc auth bypass every time when need to use sp flashtool for flashing or backup..
thanks..
Reply
Reply
kelvinchinedu
kelvinchinedu
kelvinchinedu
Contributor
Find
1,596
04-06-2024, 04:52 AM
#9
U must use it or U buy umt or powerful hydra dongle or licence
Reply
Reply
Kelpart
Kelpart
Kelpart
Newbie
Find
1
20-07-2024, 12:51 PM
#10
If read back is interupted will it lead to a brick?
