[Tutorial] How to perform RAM test on a Mediatek Android Phone

[Tutorial] How to perform RAM test on a Mediatek Android Phone

hovatek
hovatek
hovatek
Administrator
49,616
08-02-2018, 11:52 PM
#1



This is a step by step guide on how to perform RAM test on a Mediatek device. RAM test allows us to properly verify the memory storage, type and RAM on external storage along with other important info.


Requirements

  • Download latest SP flash tool
  • Download and Install Vcom Preloader Driver
  • Windows PC
  • MTK Phone
  • Scatter file and Preloader.bin for your phone [place the two files in the same folder location]


Steps on How to perform RAM test on a Mediatek Android Phone using SP flash tool


Follow the steps below to perform a RAM test on a Mediatek [MTK] android phone

  1. Launch SP flash tool

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-1-min.jpg]

  2. Click on choose scatter file at the right hand side

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-2-min.jpg]

  3. Navigate to the location of your scatter file and select it.

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-3-min.jpg]

  4. On the list of items that appear, only PRELOADER should have a file location

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-4-min.jpg]

  5. Click on "Memory Test" tab

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-5-min.jpg]

  6. Untick all the check-boxes and tick ONLY "RAM test"

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-6-min.jpg]

  7. Click on Start, switch off your phone and connect it to the PC using a USB cord

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-7-min.jpg]

  8. Wait till you get a Success message (green tick with OK) and do not interrupt. Close the green tick windows.

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-8-min.jpg]

  9. You can collect the info you need from the result of the RAM test window

    [Image: How-to-perform-a-RAM-test-on-a-Mediatek-...-9-min.jpg]


Important Notice
  • DO NOT attempt to do a "DRAM flip test" in place of "RAM test". DRAM flip test is a different test and it takes a pretty long time to complete and could damage your phone's emmc chip especially if its already very weak
  • If you're trying to obtain full length address and you don't see RAM test after selecting your scatter file, then use this method to obtain full length address
This post was last modified: 04-10-2019, 11:03 PM by X3non.
ryfoz
ryfoz
ryfoz
Senior Member
300
20-06-2018, 05:32 PM
#2

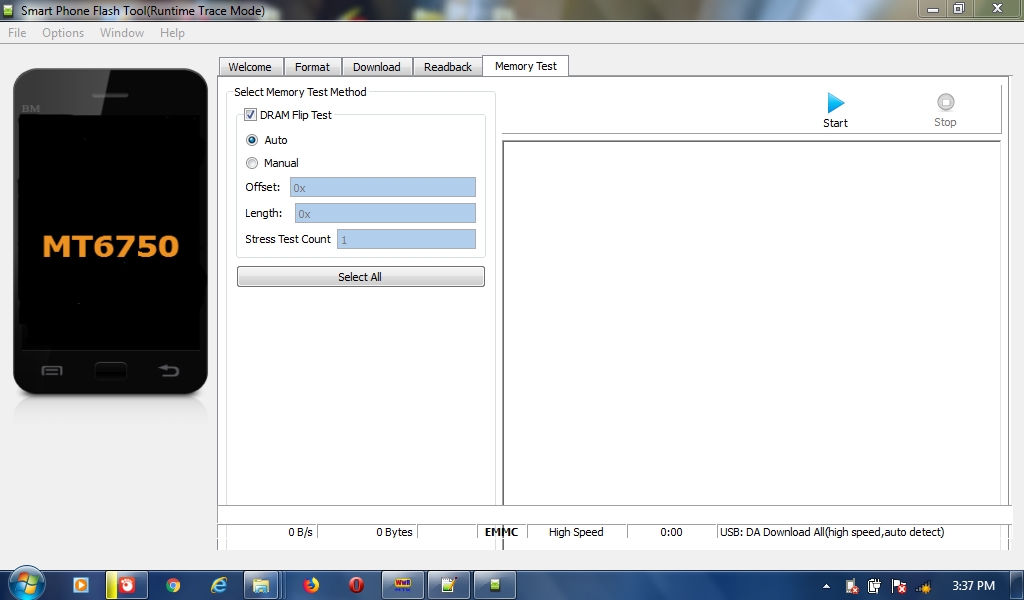

My SP FLASH TOOL v5.1744 is different from these pictures in this post

How do I select on the RAM Test?  Huh

I almost bricked my device using DRAM Test flip + Auto  Sad

[Image: 2018_03_10_15_37_41_Greenshot.jpg]
This post was last modified: 20-06-2018, 05:38 PM by ryfoz.
Attached Files
.jpg
2018-03-10 15_37_41-Greenshot.jpg
Size: 140.73 KB / Downloads: 35
hovatek
hovatek
hovatek
Administrator
49,616
20-06-2018, 07:17 PM
#3
(20-06-2018, 05:32 PM)ryfoz My SP FLASH TOOL v5.1744 is different from these pictures in this post
...

ram test has nothing to do with spft version, instead it depends on the scatter file you select [some chipset don't support it]
i'm not sure how you got to this page but if you got here through the guide at https://www.hovatek.com/forum/thread-21970.html then step 17 indicated an alt method to try if you dont see "RAM TEST"
This post was last modified: 20-06-2018, 07:37 PM by X3non.
ryfoz
ryfoz
ryfoz
Senior Member
300
20-06-2018, 10:51 PM
#4
(20-06-2018, 07:17 PM)X3non ram test has nothing to do with spft version, instead it depends on the scatter file you select [some chipset don't support it]
i'm not sure how you got to this page but if you got here through the guide at https://www.hovatek.com/forum/thread-21970.html then step 17 indicated an alt method to try if you dont see "RAM TEST"


Thanks for pointing out my mistake...I overlooked the link in error.
But my Chipset is 6750T do I have to create (add) my chipset manually in the WWR or I can go with MT6750 which was what I used before


As for the RAM. test, I will try out the EMMC_USER instead of BOOT 1 as you have guided me to do (or is there any step I have omitted in the post?)

I viewed all the links one after the other properly and read them (it wasn't easy)
I await your reply sir
This post was last modified: 20-06-2018, 10:53 PM by ryfoz.
hovatek
hovatek
hovatek
Administrator
49,616
21-06-2018, 11:50 AM
#5



(20-06-2018, 10:51 PM)ryfoz Thanks for pointing out my mistake...I overlooked the link in error.
But my Chipset is 6750T do I have to create (add) my chipset manually in the WWR or I can go with MT6750 which was what I used before


As for the RAM. test, I will try out the EMMC_USER instead of BOOT 1 as you have guided me to do (or is there any step I have omitted in the post?)

I viewed all the links one after the other properly and read them (it wasn't easy)
I await your reply sir

You can use MT6750
The goal of the RAM test is to get the length value of the full rom
For those that use DRAM flip test like yours, you get the length of the rom using https://www.hovatek.com/forum/thread-22701.html

Note!
We have a reply schedule for Free Support. Please upgrade to Private Support if you can't wait.
ryfoz
ryfoz
ryfoz
Senior Member
300
21-06-2018, 02:34 PM
#6
(21-06-2018, 11:50 AM)hovatek You can use MT6750
The goal of the RAM test is to get the length value of the full rom
For those that use DRAM flip test like yours, you get the length of the rom using https://www.hovatek.com/forum/thread-22701.html


Thank you boss...I await your reply on the main thread of  WWR + SP FLASH TOOL MTK backup procedure
Chuchu Kim
Chuchu Kim
Chuchu Kim
Junior Member
25
08-06-2020, 07:06 PM
#7
I did DRAM flip test and i think now i have destroyed my phone it doesn't power up or connected to PC please help.

PLEASE HELP.
This post was last modified: 08-06-2020, 07:09 PM by Chuchu Kim.
hovatek
hovatek
hovatek
Administrator
49,616
09-06-2020, 10:14 AM
#8
(08-06-2020, 07:06 PM)Chuchu Kim I did DRAM flip test and i think now i have destroyed my phone it doesn't power up or connected to PC please help.

PLEASE HELP.

your phone is most likely stuck in flash mode, either disconnect / reconnect the battery or leave the device to charge. refer to https://www.hovatek.com/forum/thread-808.html
Chuchu Kim
Chuchu Kim
Chuchu Kim
Junior Member
25
09-06-2020, 06:46 PM
#9
(09-06-2020, 10:14 AM)X3non
(08-06-2020, 07:06 PM)Chuchu Kim I did DRAM flip test and i think now i have destroyed my phone it doesn't power up or connected to PC please help.

PLEASE HELP.

your phone is most likely stuck in flash mode, either disconnect / reconnect the battery or leave the device to charge. refer to https://www.hovatek.com/forum/thread-808.html
Thank You i will try that.
