[Please help] Tecno WX3 LTE Stock rom, custom reovery image needed.
[Please help] Tecno WX3 LTE Stock rom, custom reovery image needed.
06-09-2017, 11:45 AM
(06-09-2017, 05:55 AM)JuneX05 Here is what i did.
I executed the command you gave
flashed super su and backed up everything in sdcard.
I really do not know why this is happenning but am frustrated already.
The phone doesnot boot to system right now but it boots to recovery and also it charges.. what is the problem with the philz?
did it corrupt the boot
Its not Philz. You would likely get the same with other recoveries.
If it can still boot into stock recovery then get it to Bootloader and relock the bootloader as explained @ https://www.hovatek.com/forum/thread-15863.html
waiting...
This post was last modified: 06-09-2017, 11:48 AM by hovatek.
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
06-09-2017, 01:26 PM
(06-09-2017, 11:45 AM)hovatek Its not Philz. You would likely get the same with other recoveries.
If it can still boot into stock recovery then get it to Bootloader and relock the bootloader as explained @ https://www.hovatek.com/forum/thread-15863.html
waiting...
Bootloader locked......
What do i do next?
07-09-2017, 07:46 AM
The problem was not the recovery,
The recovery is very just fine.... The problem was the super user i downloaded...
I downloaded an update super so it caused the bootloop.
So i downloaded the super user 2.82 latest version and everything.
And now my phone is rooted. All special thanks for not giving up on my careless attitude.
Can we now create a guide on how to root this phone though am not sure if the steps are different from any other phone.
......waiting
Below are some of the screenshots showing the root successfull.....
This post was last modified: 07-09-2017, 07:52 AM by JuneX05.
07-09-2017, 03:21 PM
(07-09-2017, 07:46 AM)JuneX05 ...
Below are some of the screenshots showing the root successfull.....
nicely done
BUT we'll need a screenshot of root confirmation using root checker @ https://play.google.com/store/apps/detai...heck&hl=en
supersu v2.82 worked for you right?
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
07-09-2017, 10:11 PM
(07-09-2017, 07:46 AM)JuneX05 ...
Below are some of the screenshots showing the root successfull.....
nicely done
BUT we'll need a screenshot of root confirmation using root checker @ https://play.google.com/store/apps/detai...heck&hl=en
supersu v2.82 worked for you right?
[/quote]
Yeah super su 2.82 worked for me....
Here is the link
https://s3-us-west-2.amazonaws.com/super...271822.zip

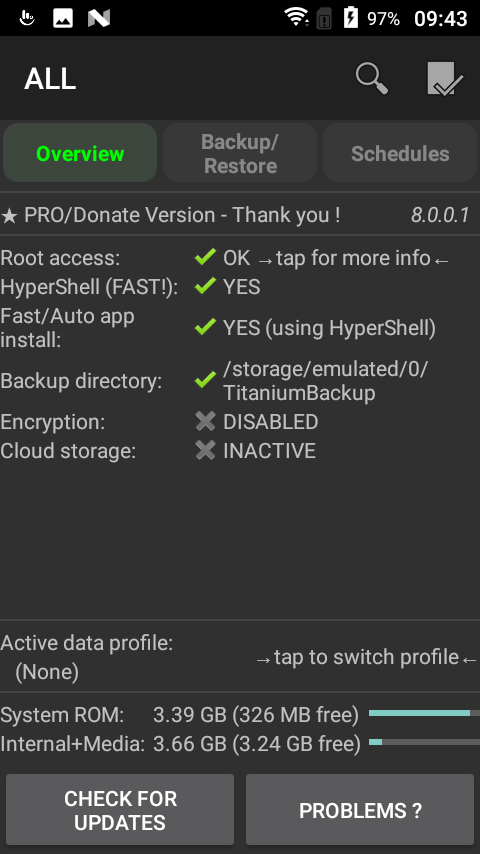

and here is the root checker confirmation.
Sent from my TECNO WX3LTE using Hovatek Forum
This post was last modified: 07-09-2017, 10:40 PM by JuneX05.
08-09-2017, 10:29 AM
(07-09-2017, 10:43 PM)JuneX05 I would like to request one thing yet....
how can i create the full back up that can be flashed using spflash tool?
and
i cannot find /proc/dumchar_info
what file can have the same kind of information like the above?
Please help....
......waiting
For your chip, you'll need a chinese box like CM2 MTK. Although you could dump your partitions using adb, the scatter file would be the next and main challenge for you.
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
11-09-2017, 11:35 AM
(08-09-2017, 10:29 AM)hovatek(07-09-2017, 10:43 PM)JuneX05 I would like to request one thing yet....
how can i create the full back up that can be flashed using spflash tool?
and
i cannot find /proc/dumchar_info
what file can have the same kind of information like the above?
Please help....
......waiting
For your chip, you'll need a chinese box like CM2 MTK. Although you could dump your partitions using adb, the scatter file would be the next and main challenge for you.
ok then i have the following information
Code:
boot -> /dev/block/mmcblk0p7
cache -> /dev/block/mmcblk0p21
expdb -> /dev/block/mmcblk0p10
flashinfo -> /dev/block/mmcblk0p23
frp -> /dev/block/mmcblk0p17
keystore -> /dev/block/mmcblk0p14
lk -> /dev/block/mmcblk0p5
logo -> /dev/block/mmcblk0p9
metadata -> /dev/block/mmcblk0p19
nvdata -> /dev/block/mmcblk0p18
nvram -> /dev/block/mmcblk0p2
oemkeystore -> /dev/block/mmcblk0p12
para -> /dev/block/mmcblk0p6
proinfo -> /dev/block/mmcblk0p1
protect1 -> /dev/block/mmcblk0p3
protect2 -> /dev/block/mmcblk0p4
recovery -> /dev/block/mmcblk0p8
seccfg -> /dev/block/mmcblk0p11
secro -> /dev/block/mmcblk0p13
system -> /dev/block/mmcblk0p20
tee1 -> /dev/block/mmcblk0p15
tee2 -> /dev/block/mmcblk0p16
userdata -> /dev/block/mmcblk0p22how can this help me?
and can i know the file formats of the above i only know the cache, system and the userdata are in the .img format when dumped. what about the others?
11-09-2017, 05:00 PM
(11-09-2017, 11:35 AM)JuneX05 ok then i have the following information
Code:... userdata -> /dev/block/mmcblk0p22
how can this help me?
and can i know the file formats of the above i only know the cache, system and the userdata are in the .img format when dumped. what about the others?
as far as full SP flash tool backup is concerned, only a box would get you that (surely we have mentioned that)
reason been that you'll encounter errors trying to dump preloader, and only a box will give you a scatter file after dumping
for the file formats for the various partitions you listed above, download the scatter file that matches your chipset @ https://www.hovatek.com/forum/thread-12724.html
edit the scatter file using notepad++ , you should see something like this below ("file name" also gives the file format)
Code:
- partition_index: SYS0
partition_name: preloader
file_name: preloader.bin
is_download: true
type: SV5_BL_BIN
linear_start_addr: 0x0
physical_start_addr: 0x0
partition_size: 0x40000
region: EMMC_BOOT_1
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: BOOTLOADERS
reserve: 0x00Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
11-09-2017, 05:05 PM
(11-09-2017, 05:00 PM)X3non(11-09-2017, 11:35 AM)JuneX05 ok then i have the following information
Code:... userdata -> /dev/block/mmcblk0p22
how can this help me?
and can i know the file formats of the above i only know the cache, system and the userdata are in the .img format when dumped. what about the others?
as far as full SP flash tool backup is concerned, only a box would get you that (surely we have mentioned that)
reason been that you'll encounter errors trying to dump preloader, and only a box will give you a scatter file after dumping
for the file formats for the various partitions you listed above, download the scatter file that matches your chipset @ https://www.hovatek.com/forum/thread-12724.html
edit the scatter file using notepad++ , you should see something like this below ("file name" also gives the file format)
Code:- partition_index: SYS0 partition_name: preloader file_name: preloader.bin is_download: true type: SV5_BL_BIN linear_start_addr: 0x0 physical_start_addr: 0x0 partition_size: 0x40000 region: EMMC_BOOT_1 storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: BOOTLOADERS reserve: 0x00
thank you very much....
but there are still some partitions that are not listed
does that mean they are not important?
