How to setup a working folder in Android Kitchen

How to setup a working folder in Android Kitchen

 View a Printable Version

hovatek
hovatek
hovatek
Administrator
Website Find
50,878
28-09-2014, 09:17 PM
#1



If you've not setup Android Kitchen then follow this guide @ http://www.hovatek.com/forum/thread-647.html to do so.

Requirement

  • PC
  • Android Kitchen
  • Custom ROM OR Boot.img + System.img

Steps to setup a working folder in Android Kitchen


Follow the steps below to create a project / working folder in Android kitchen

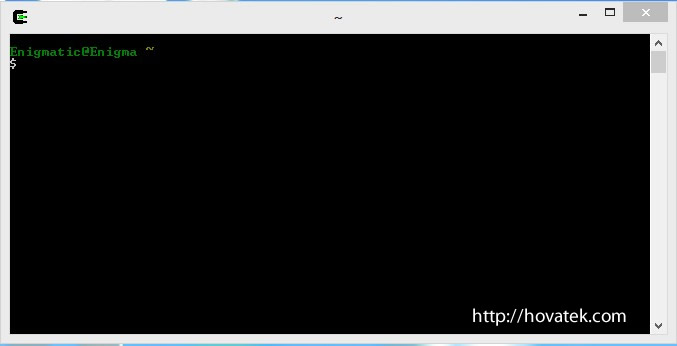

  1. Launch Android Kitchen

    [Image: how_to-setup_a_working_folder_in_android_kitchen_1.jpg]

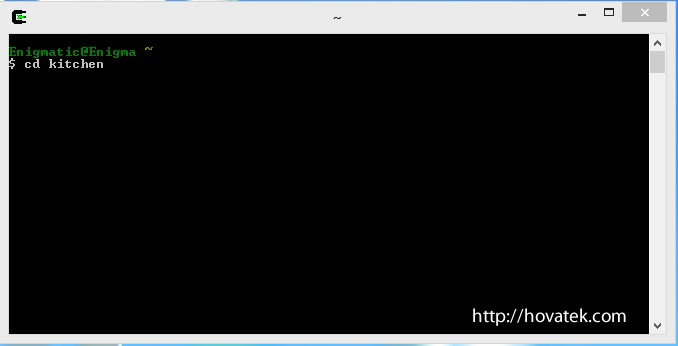

  2. Type

    Code:

    cd kitchen

  3. Then press enter

    [Image: how_to-setup_a_working_folder_in_android_kitchen_2.jpg]

  4. Type

    Code:

    ./menu

  5. Then press Enter

    [Image: how_to-setup_a_working_folder_in_android_kitchen_3.jpg]

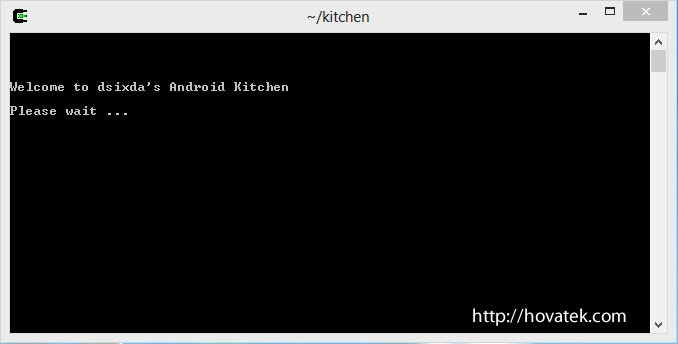

  6. Wait for Android Kitchen to initialize

    [Image: how_to-setup_a_working_folder_in_android_kitchen_4.jpg]

  7. Android Kitchen should present you with a Menu

    [Image: how_to-setup_a_working_folder_in_android_kitchen_5.jpg]

  8. Press 1 (to select option 1 which is Setup a working folder from a ROM) then tap Enter

    [Image: how_to-setup_a_working_folder_in_android_kitchen_6.jpg]

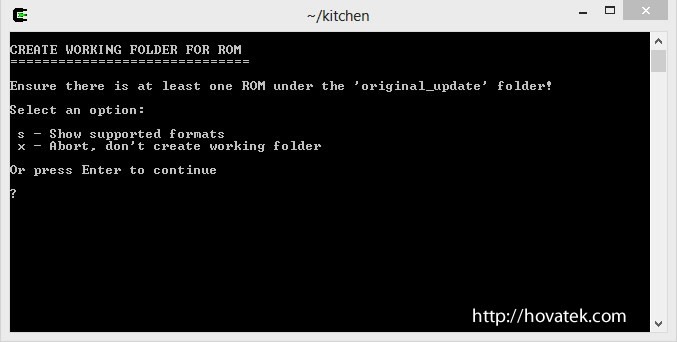

  9. Tap Enter to proceed

    [Image: how_to-setup_a_working_folder_in_android_kitchen_7.jpg]

  10. Select the option which corresponds to the file(s) you wish to use to setup your working folder then tap enter

    [Image: how_to-setup_a_working_folder_in_android_kitchen_8.jpg]

  11. Enter y / n (If you're not sure, always enter the default option as suggested by (default: value)  )

    [Image: how_to-setup_a_working_folder_in_android_kitchen_9.jpg]

  12. Wait for the process to run. If you're prompted to make a choice of how you wish to extract system.img, select the recommended option or the option that can extract from more than one file system type.

    [Image: how_to-setup_a_working_folder_in_android_kitchen_10.jpg]

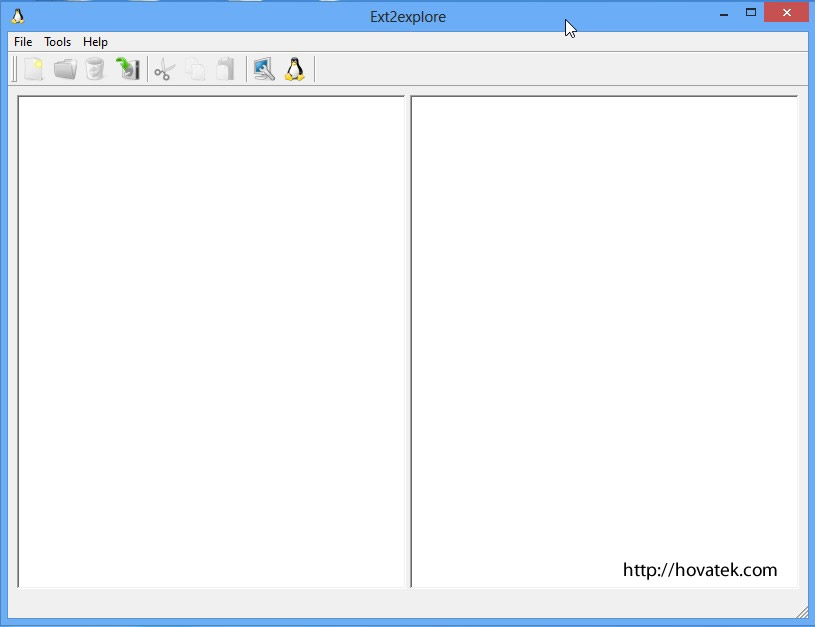

  13. Ex2Eplore should get launched

    [Image: how_to-setup_a_working_folder_in_android_kitchen_11.jpg]

  14. Click on File at the top

    [Image: how_to-setup_a_working_folder_in_android_kitchen_12.jpg]

  15. Click Open Image

    [Image: how_to-setup_a_working_folder_in_android_kitchen_13.jpg]

  16. In the window that pops up, navigate to the working folder > system and select the system image

    [Image: how_to-setup_a_working_folder_in_android_kitchen_14.jpg]

  17. Highlight the file path in the left pane by clicking it once. It should turn blue when highlighted

    [Image: how_to-setup_a_working_folder_in_android_kitchen_15.jpg]

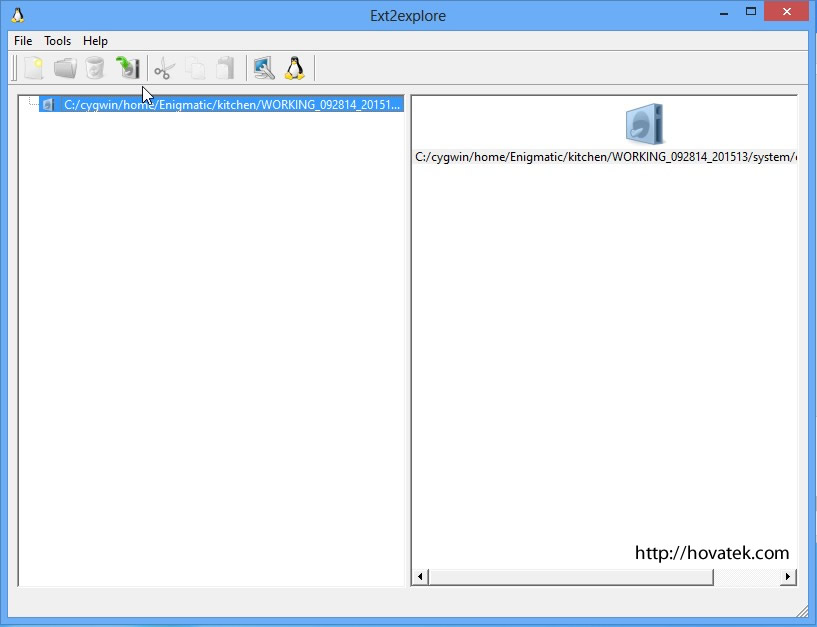

  18. Click the unpack icon (curved green arrow) at the top

    [Image: how_to-setup_a_working_folder_in_android_kitchen_16.jpg]

  19. In the window that pops up, navigate to the system folder, select it then click OK

    [Image: how_to-setup_a_working_folder_in_android_kitchen_17.jpg]

  20. Wait for the unpacking to be complete then close Ex2Eplore

    [Image: how_to-setup_a_working_folder_in_android_kitchen_18.jpg]

  21. Tap Enter to proceed

    [Image: how_to-setup_a_working_folder_in_android_kitchen_19.jpg]

  22. Wait for the process to be complete

    [Image: how_to-setup_a_working_folder_in_android_kitchen_20.jpg]

  23. Type n then tap Enter

    [Image: how_to-setup_a_working_folder_in_android_kitchen_21.jpg]

  24. Tap Enter to Finish

    [Image: how_to-setup_a_working_folder_in_android_kitchen_22.jpg]

  25. Open the Working folder in the Kitchen folder

    [Image: how_to-setup_a_working_folder_in_android_kitchen_23.jpg]

  26. Your Working folder should have been setup (comprising of the Meta-INF folder, System folder and Boot image )

    [Image: how_to-setup_a_working_folder_in_android_kitchen_24.jpg]
This post was last modified: 17-06-2018, 07:47 PM by hovatek.
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
Reply
Reply
biosoftech
biosoftech
biosoftech
Junior Member
Find
15
25-03-2015, 12:13 PM
#2
How to use the working folder after successful creating it.
Reply
Reply
hovatek
hovatek
hovatek
Administrator
Website Find
50,878
25-03-2015, 12:16 PM
#3
(25-03-2015, 12:13 PM)biosoftech How to use the working folder after successful creating it.

create a new thread by clicking https://www.hovatek.com/forum/newthread.php?fid=21
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
