help required in unlocking (zong) huawei E5573Cs -322

help required in unlocking (zong) huawei E5573Cs -322

Asaad Fazal Khan
Asaad Fazal Khan
Asaad Fazal Khan
Enthusiastic Member
5
19-03-2018, 07:54 PM
#1



Hi,
I am the owner of a (zong) huawei E5573Cs -322 mifi device, i tried using the following tutorial to unlock my mifi device but have ran into problem.
Quote:x3non 's tutorial "How to unlock Huawei E5573Cs Mifis e.g -322, -609 etc" /thread-16772.html
My device info:
.png
device information.png
Size: 76.57 KB / Downloads: 26

My device snapshots
.jpg
Size: 859.72 KB / Downloads: 24

.jpg
Size: 978.72 KB / Downloads: 19

I followed the following steps:
- Install the drivers from Swift-E5775 iso
- Disassembled the mifi device,
- Boot short the device and connected it to the pc
- let the pc detect it in boot short mode
- launch the balong USB downloader
- press detect (it detects the 3g modam)
- select the usbloader-5573cs-322.bin and click load
here i see the following code which is different from the one shown in the above tutorial leting me to infer i was unsuccessful in balong load step,

Code:

Ïîèñê óñòðîéñòâ:

COM3 - Standard Serial over Bluetooth link
      BTHENUM\{00001101-0000-1000-8000-00805f9b34fb}_LOCALMFG&0000
COM4 - Standard Serial over Bluetooth link
      BTHENUM\{00001101-0000-1000-8000-00805f9b34fb}_LOCALMFG&000f
COM7 - HUAWEI Mobile Connect - 3G PC UI Interface [BOOT_3G]
      USB\VID_12D1&PID_1443&REV_0001
      USB\VID_12D1&PID_1443

Ïàðàìåòðû çàãðóçêè:
00000001. 00000F60 10000000 00000054
00000002. 00592CA8 57900000 00000FB4
Íàéäåíî 2 áëîêà(îâ) äëÿ çàãðóçêè.

Ïûòàåìñÿ îòêðûòü óñòðîéñòâî \\.\COM7 ...
Çàãðóçêà áëîêà 0, àäðåñ=10000000, ðàçìåð=3936
Âñåãî ïàêåòîâ â áëîêå [0]: 4
Ìîäåì îòâåðã ïàêåò êîíöà äàííûõ. Îáðàç ïàêåòà:

0000: ED 05 FA 53 C0                                   *í.úSÀ           *
i was using windows 10, but i also tried the same steps on a fresh install windows 7 machine with the same results
.jpg
Size: 876.79 KB / Downloads: 25

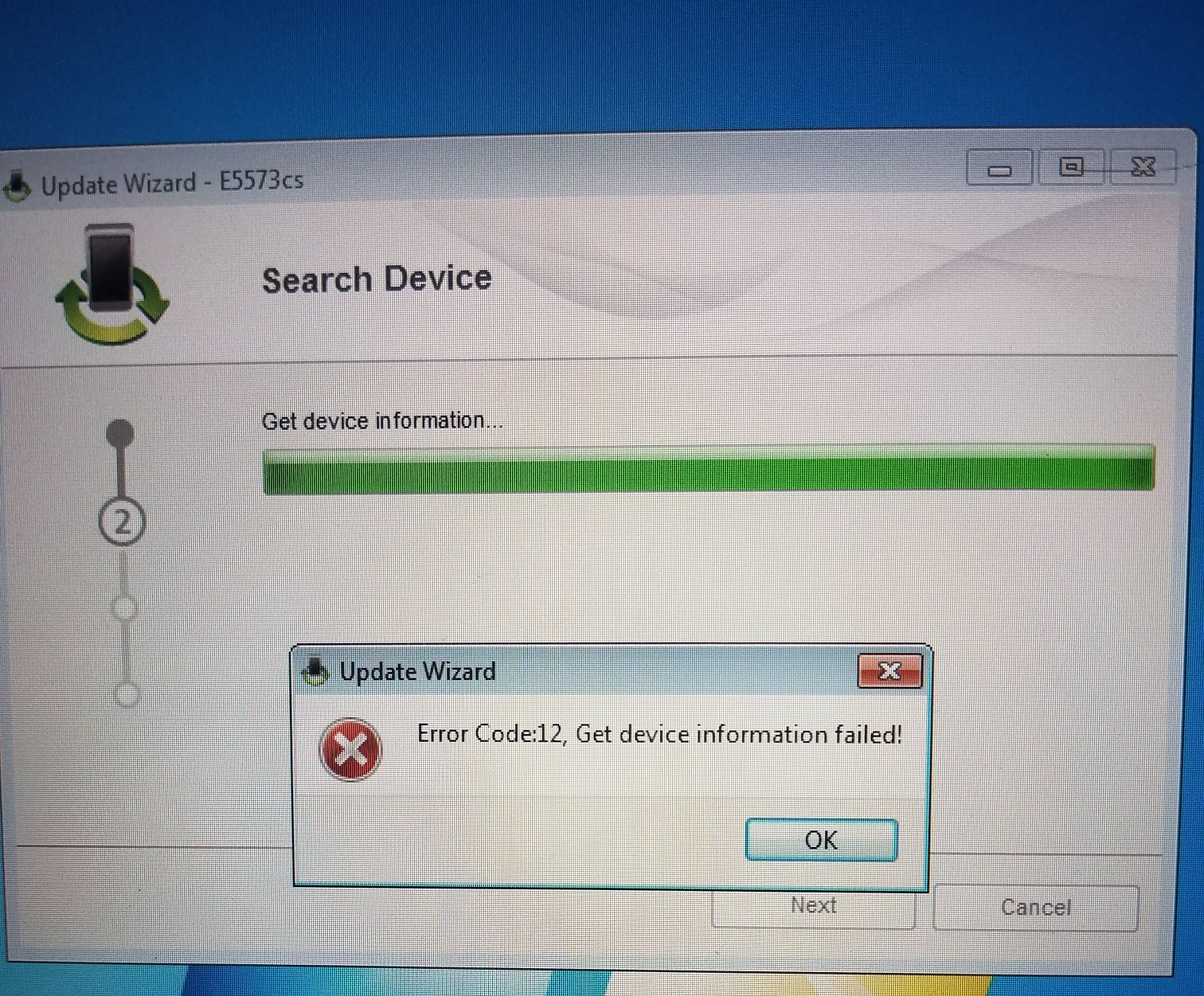

if i just ignore it and move on to the next step i get "get device information field"
.jpg
update 99.jpg
Size: 1,007.44 KB / Downloads: 18


and my device manager looks something like this (on the fresh install windows 7 machine) (windows 10 machine is the same except on windows 7 network adapters etc are uninstalled)
.jpg
device manager.jpg
Size: 953.51 KB / Downloads: 22


there is no change in device manager before and after balong step.

I have tried using other boatload files like E5573Cs but they do not work either.

Right now i have at my hands a brick device and would appreciate input of someone who knows what i have done wrong and what should i do to make this work.
X3non
X3non
X3non
Recognized Contributor
22,062
20-03-2018, 04:29 PM
#2
(19-03-2018, 07:54 PM)Asaad Fazal Khan Hi,
I am the owner of a (zong) huawei E5573Cs -322 mifi device, i tried using the following tutorial to unlock my mifi device but have ran into problem.
...
whats the status of the device when you turn it on now; the two led lights blink continuously right?
retry flashing the firmware 2 - 3 more times , the driver in device manager is meant to change to "FC-*****-interface"  and there should be two of them displayed in device manager before the device will be detected for firmware flashing

if it doesn't work, then uninstall all huawei drivers using usb deview then download and install FC serial drivers @ http://www.mediafire.com/file/39p188qk2b...Serial.zip then retry flashing the firmware
This post was last modified: 20-03-2018, 04:37 PM by X3non.
weelcup
weelcup
weelcup
Newbie
1
27-04-2018, 10:20 PM
#3
not work
X3non
X3non
X3non
Recognized Contributor
22,062
28-04-2018, 05:53 PM
#4
(27-04-2018, 10:20 PM)weelcup not work

this is someone's support thread., create a new thread for your device issue
see https://www.hovatek.com/forum/thread-514.html for how to create a thread
