[Tutorial] How to Flash / Upgrade Nokia BB5 Phones Using Infinity Best
[Tutorial] How to Flash / Upgrade Nokia BB5 Phones Using Infinity Best
31-07-2016, 07:23 PM
This is a step by step guide on how to flash nokia BB5 phones (Java & Symbian ONLY) using Infinity Best tool.
Requirements
- Download Infinity Box
- Download Nokia PC Suite
- Search online for, download firmware for your nokia device based on the RM-*** product code e.g RM-632
- USB cable
- Properly charged battery
How to Flash a Nokia BB5 Phone using Infinity Best
The steps below explain how to flash a nokia BB5 phone using infinity best
- Install Nokia PC Suite (it would install necessary drivers)
- Create a new folder on your desktop and rename it to the model of the phone you are about to flash
eg Nokia 201 with model RM-799 (the folder would be named RM-799)
- Copy the firmware files you downloaded into this folder
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-1.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-1.png)
- Extract the content of the infinity box zip file
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-2.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-2.png)
- Right click on InfinityBest.exe and Open
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-3.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-3.png)
- When the Infinity Best windows opens, Click on the flashing tab
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-4.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-4.png)
- At the top left hand corner, Click on Connect > USB
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-5.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-5.png)
- Next, Click on Settings > DataPackage path > Change active dir
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-6.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-6.png)
- Navigate to and select Desktop (this is the location of the folder that contains the firmware files)
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-7.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-7.png)
- Tick the checkbox beside "DeadMode"
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-8.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-8.png)
- Tick the checkbox beside "Set Normal"
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...-Box-9.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-9.png)
- Tick the checkbox beside "FactorySet"
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...Box-10.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-10.png)
- Click the dropdown box beneath Select Model > scroll to the particular model you want to flash and click on it
(In my case it's RM-799)
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...Box-11.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-11.png)
- Tick the checkbox beside "Use INI". The files for flashing should automatically load (skip this step if the box is already ticked and the files are loaded)
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...Box-12.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-12.png)
- Click on Flash
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...Box-13.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-13.png)
- Connect the phone using USB and wait for the process to complete
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...Box-14.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-14.png)
- Once successful, You should see Done
![[Image: How-to-Flash-Nokia-Devices-Java-Symbian-...Box-15.png]](https://www.hovatek.com/blog/bpyeki/uploads/2016/07/How-to-Flash-Nokia-Devices-Java-Symbian-ONLY-Using-Infinity-Box-15.png)
- You can now disconnect and Power on the phone
Important Notice
- Do not interrupt the flashing process as it could result in a dead phone
- Always try to search well for the latest firmware before download / flashing. Using a firmware below the current firmware on the phone would result in a partially bricked phone (this is because downgrading isn't allowed)
- If this method doesn't work for you, then you can try flashing using Phoenix Service Suite
- Only flash firmwares for your exact phone model and RM product code
This post was last modified: 30-07-2021, 11:54 AM by X3non.
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
22-06-2017, 11:30 PM
Sent from my iPhone using Hovatek Forum
23-06-2017, 12:45 AM
(22-06-2017, 11:30 PM)UsmanZack4000 What if the File Does not load Automatic
Sent from my iPhone using Hovatek Forum
Read step 8 and 9 again
If you have the path to the location of thr firmware files, the set step 8 and 9 based on the location of the file path you have.
OR ensure that the RM-x you selected matches the firmware you intend to flash
Learn MediaTek, Unisoc / Spreadtrum (SPD) and Qualcomm Software Repairs @ https://www.hovatek.com/training
Note!
We have a reply schedule for Forum Support. Please try Private Support if you can't wait.
04-08-2017, 04:03 AM
OR ensure that the RM-x you selected matches the firmware you intend to flash
This post was last modified: 04-08-2017, 04:03 AM by Iaraizui1721.
11-08-2017, 10:47 PM
thanks
Best Regards
18-02-2018, 12:05 AM
(17-02-2018, 07:01 PM)walex24 Hello,please can you explain to me on how to download Nokia x2-01 firmware, because I don't understand on how to download it? Thanks.
Download @ https://drive.google.com/file/d/0BzbhQNO...lhcG8/view
This post was last modified: 18-02-2018, 02:13 AM by xerxes.
18-02-2018, 01:40 AM
But when I watch some videos on it and I think they are downloading it one after the other but there is one link that refuses to open please I need your help or I'm wrong, please I need your help. thanks.
Attached Files
18-02-2018, 02:11 AM

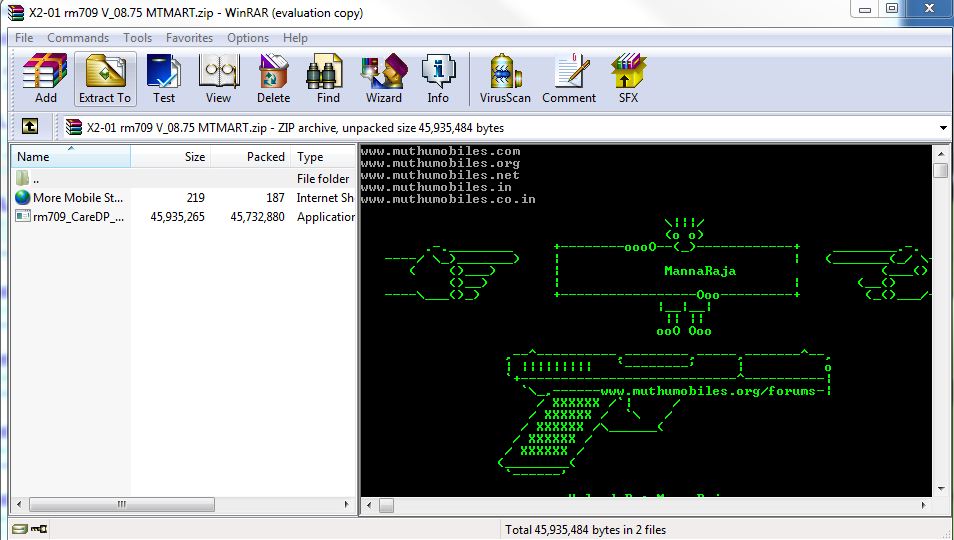

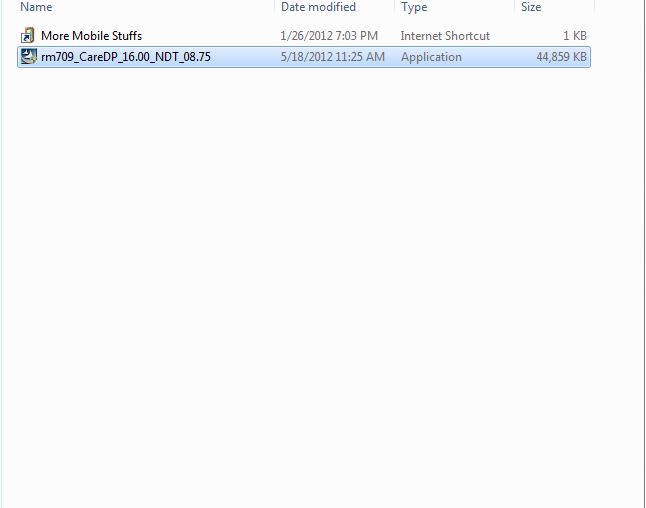

(18-02-2018, 01:40 AM)walex24 Thanks for your response, but this is what I saw when I finished downloading and I extracted it and I opened the folder and run it but I cannot see anything.
But when I watch some videos on it and I think they are downloading it one after the other but there is one link that refuses to open please I need your help or I'm wrong, please I need your help. thanks.
Please create a new thread so we can focus on it.
This post was last modified: 18-02-2018, 02:13 AM by xerxes.
